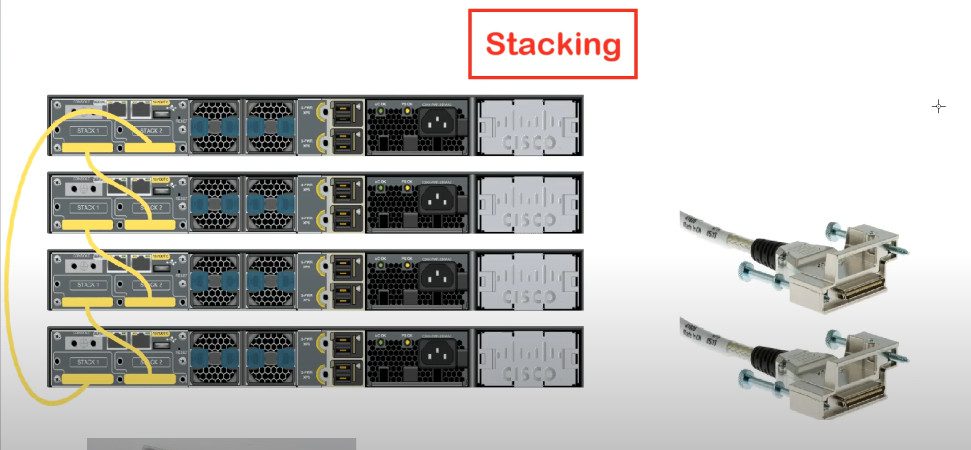

• Physical Connection: Multiple switches are connected through special ports designed for stacking (often called stacking ports or stacking cables). These ports allow switches to communicate with each other at high speed, essentially creating a single logical switch from multiple physical units.

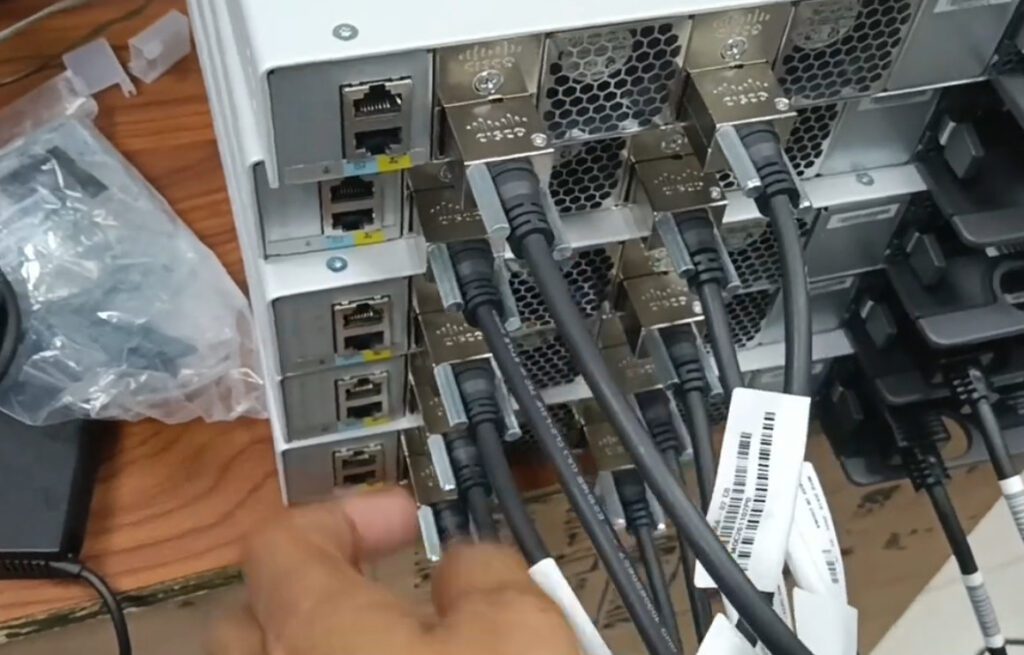

• Stacking Cables: These are often proprietary cables that allow direct communication between switches in the stack. They support high-speed data transfer and ensure seamless operation between switches

Types of Stacking:

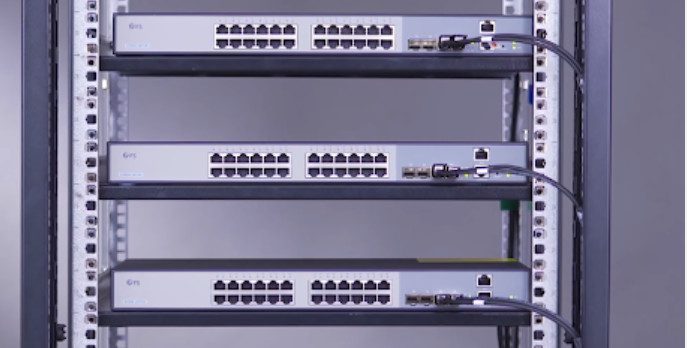

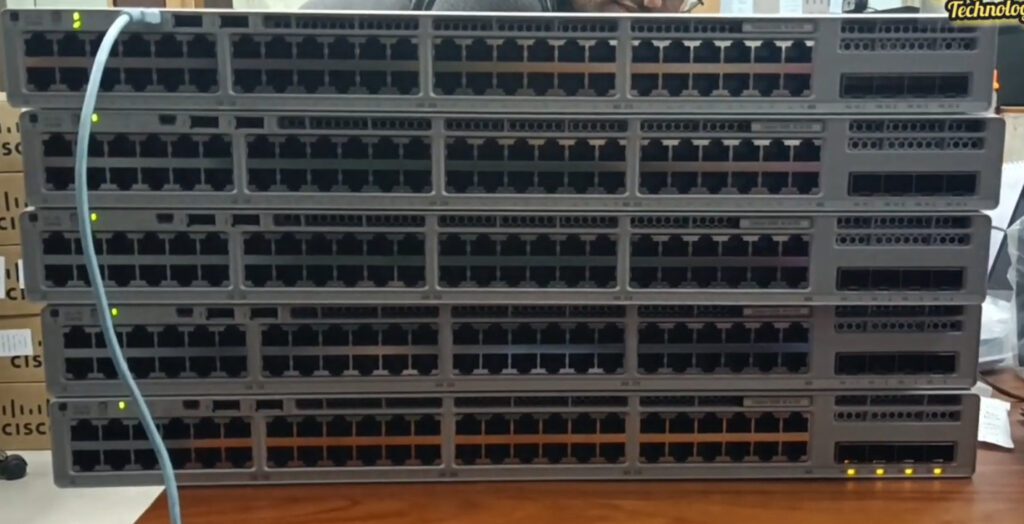

• Vertical Stacking (Backplane Stacking): Switches are connected in a vertical alignment, where each switch is stacked directly on top of another (often physically mounted) with stacking cables linking them together.
• Horizontal Stacking: Less common but still possible, horizontal stacking connects switches side-by-side using cables.

Benefits of Switch Stacking:

• Simplified Management: All switches in the stack are managed as a single unit, which reduces the complexity of configuration and monitoring. Instead of managing each switch individually, you can manage all switches in the stack through a single IP address.
• Increased Bandwidth: Switch stacking can provide more throughput as the stacked switches can communicate more efficiently, especially when they share backplane bandwidth.
• Redundancy: If one switch in the stack fails, the remaining switches can continue to function, ensuring high availability. This is because the stack operates as a single logical switch.
• Scalability: Stacking allows you to easily add more switches to the network without disrupting operations. New switches are simply added to the stack and integrated into the network configuration.
• Port Density: You get a larger number of ports without needing to manage multiple individual switches, which is particularly useful for growing networks.

Stacking Limitations:

• Physical Limitations: There’s usually a limit to how many switches you can stack (e.g., Cisco might allow 9 switches in a stack). If more ports or higher bandwidth are needed, other solutions (like fabric switches) may be considered.
• Cost: Stacked switches can be more expensive than standalone switches, both in terms of purchasing the switches and the cables needed to stack them.
• Compatibility: Not all switches are stackable. This typically depends on the manufacturer and specific switch models.

Switch Stacking Protocols:

Different vendors use specific protocols for switch stacking:

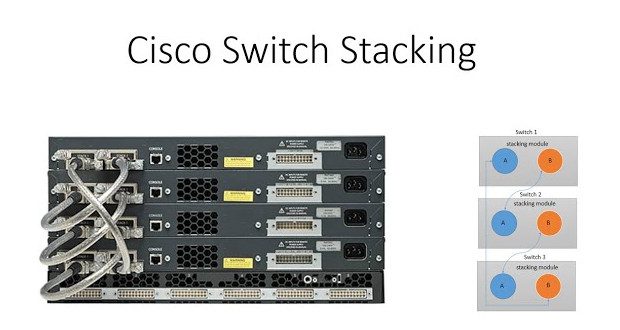

• Cisco StackWise: A proprietary stacking technology that provides high-speed communication between Cisco switches.
• HP Virtual Connect: A similar technology used by Hewlett Packard Enterprise to stack and manage multiple switches as one.
• Juniper Virtual Chassis: A Juniper feature that lets multiple switches act as a single logical device.
• StackWise Virtual: Used in some Cisco Catalyst models for a virtualized stacking solution.

Management and Configuration:

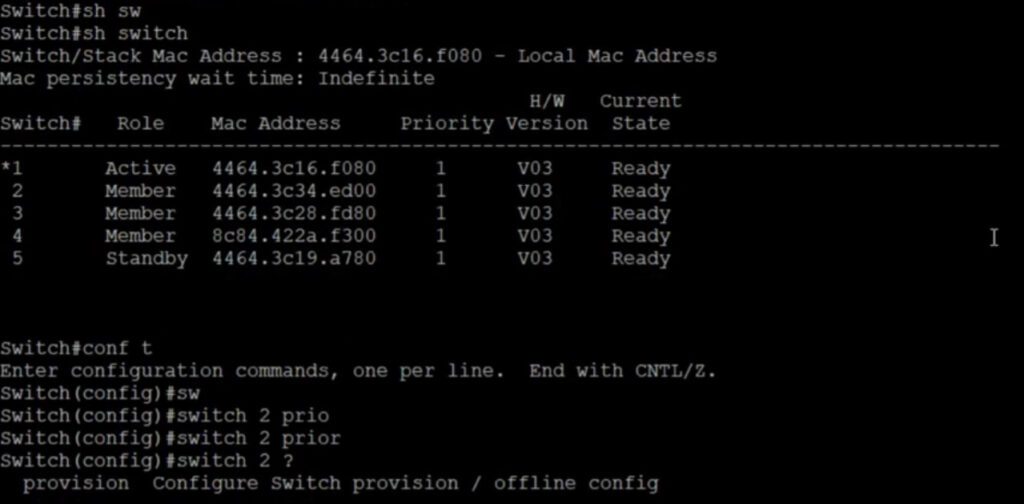

Once stacked, switches typically have a leader master switch, which handles most of the configuration and management tasks. If the leader fails, another switch in the stack can take over, maintaining continuity.

 Use Cases:

• Enterprise Networks: Large offices or data centers that need scalability and high availability.
• Campus Networks: Providing more port capacity and redundancy without extra complexity.
• High-Density Environments: Such as in places where a large number of devices need to be connected but where a modular approach may be too costly.

In summary, switch stacking is a cost-effective and efficient way to expand network infrastructure while maintaining ease of management and high availability. It is ideal for environments where scalability and redundancy are key priorities.
