Linux Boot Process

The Linux boot process refers to the sequence of steps that a Linux system goes through when it is powered on and initialized until the system is fully ready for user interaction. It involves several stages, including hardware initialization, loading the kernel, mounting filesystems, and starting system services. Below is a detailed breakdown of each step in the Linux boot process:

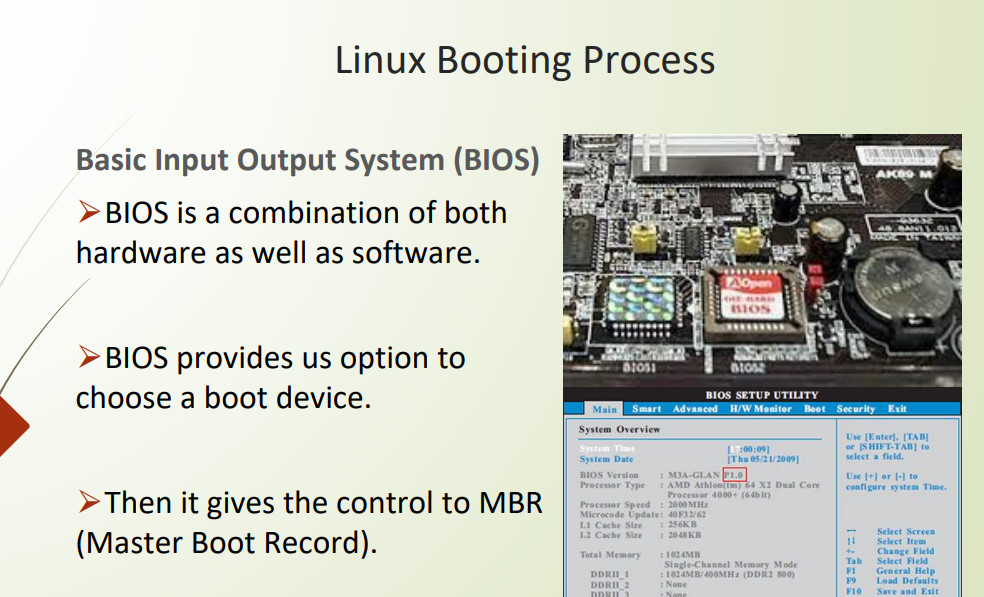

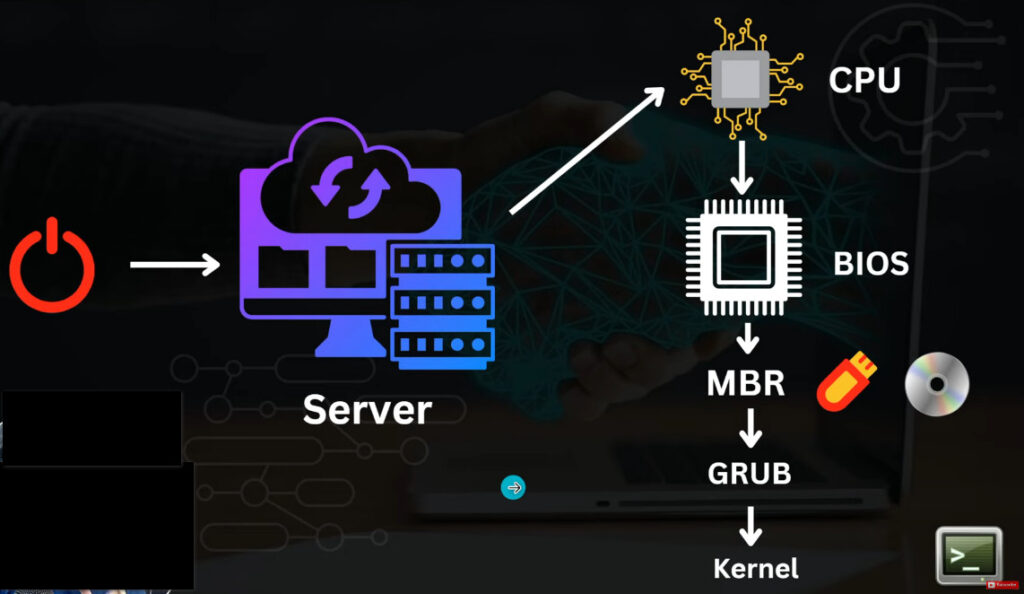

1. BIOS/UEFI (Basic Input/Output System/Unified Extensible Firmware Interface)

  • Role: The BIOS or UEFI firmware is the first software that runs when a computer is powered on. It is responsible for initializing hardware components like the CPU, memory, storage devices, and peripheral devices. UEFI is the modern replacement for BIOS, offering more advanced features and support for larger disk sizes.

  • Actions:

    • Power-on self-test (POST): Verifies hardware functionality (memory, CPU, etc.).
    • Detects and initializes hardware components.
    • Identifies the boot device (hard drive, SSD, CD/DVD, USB, etc.).

  • End of BIOS/UEFI: The BIOS/UEFI will then hand over control to the bootloader (GRUB in most Linux distributions).

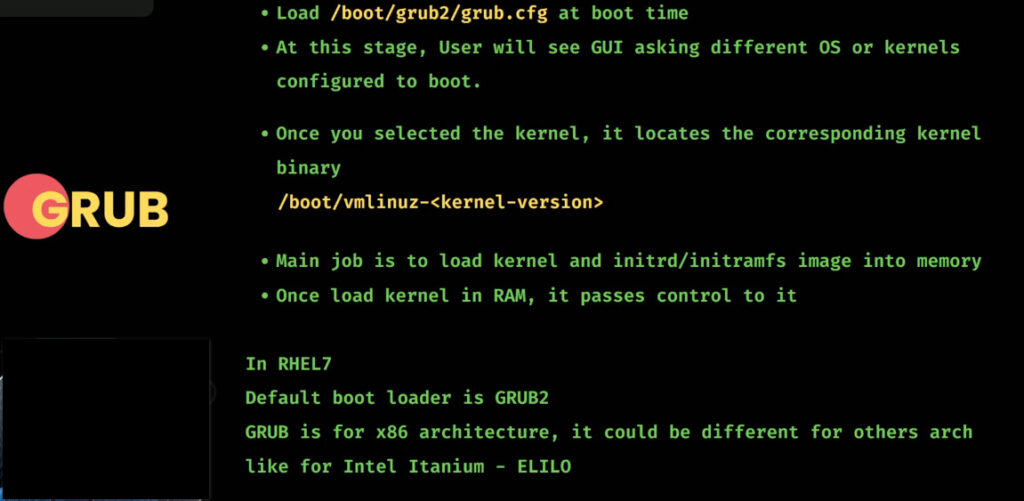

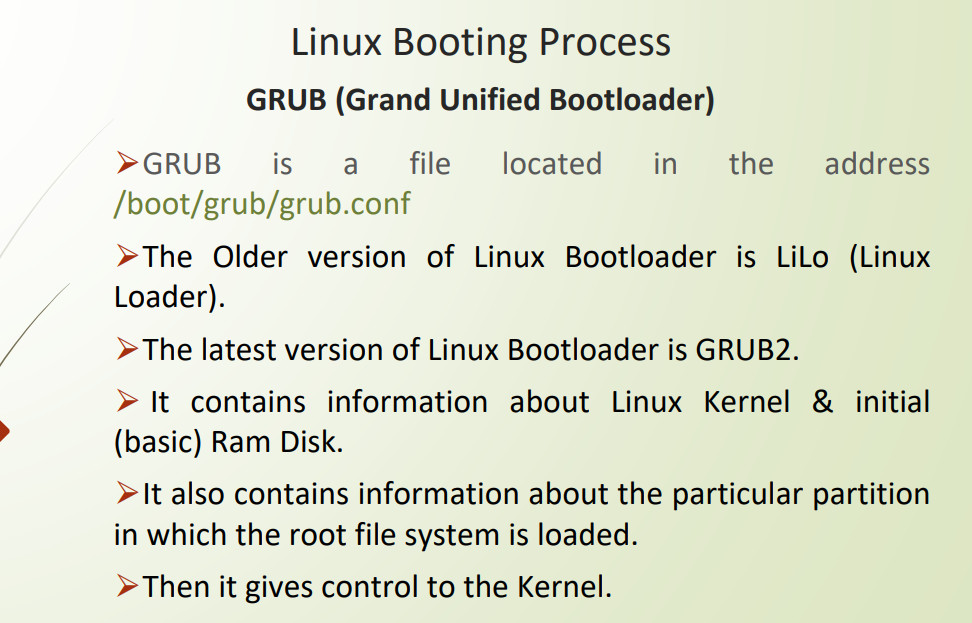

2. Bootloader (GRUB)

  • Role: The bootloader is responsible for loading the operating system kernel into memory and transferring control to it. The most commonly used bootloader on Linux systems is GRUB (Grand Unified Bootloader).

  • Actions:

    • The bootloader presents a boot menu (if configured to do so) where the user can select an operating system or kernel to boot.
    • It loads the Linux kernel into memory from the selected boot partition.
    • GRUB also loads the initial RAM disk (initrd/initramfs), a temporary root filesystem used during the kernel initialization process.
    • Once the kernel and initrd are loaded, GRUB transfers control to the kernel to begin the next stage of booting.

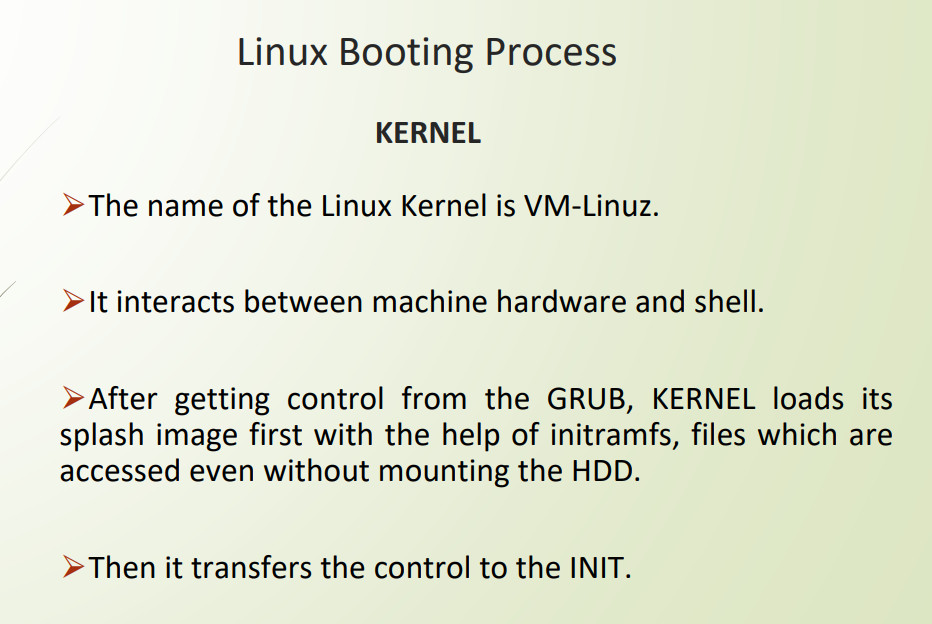

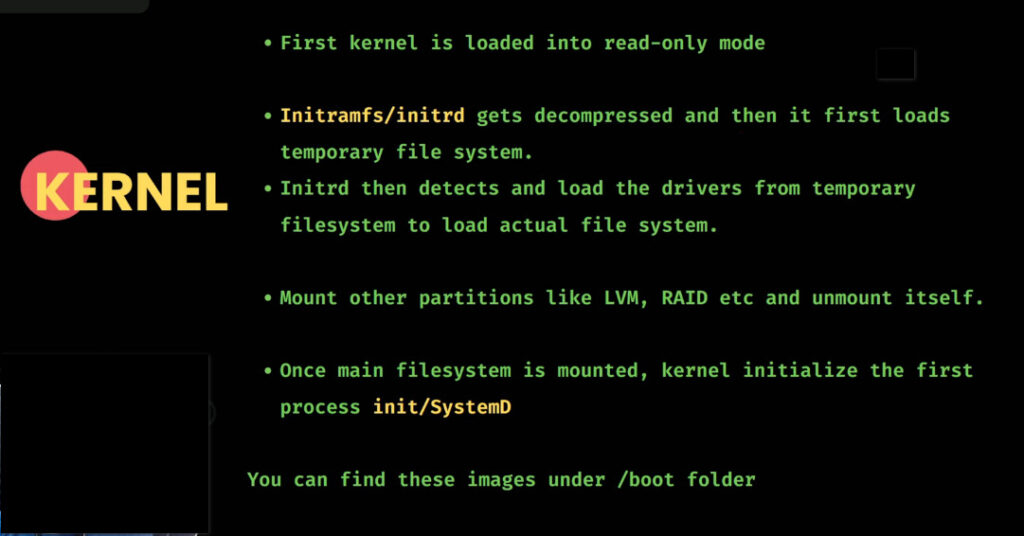

3. Kernel Initialization

  • Role: The Linux kernel is the core of the operating system. It manages hardware resources, memory, processes, and system calls.

  • Actions:

    • Kernel Loading: The kernel is decompressed and loaded into memory by the bootloader.
    • Hardware Initialization: The kernel initializes essential hardware drivers for devices such as the CPU, memory, disks, and network interfaces.
    • Mounting the Root Filesystem: The kernel mounts the root filesystem (often using the initial RAM disk created earlier). The root filesystem contains the essential files needed to continue the boot process.
    • Starting the Scheduler: The kernel starts the process scheduler, which manages system processes.

  • Important Files/Directories:

    • /boot: Contains the kernel image (e.g., vmlinuz).
    • /initrd: Contains the initial RAM disk image, which includes essential drivers.

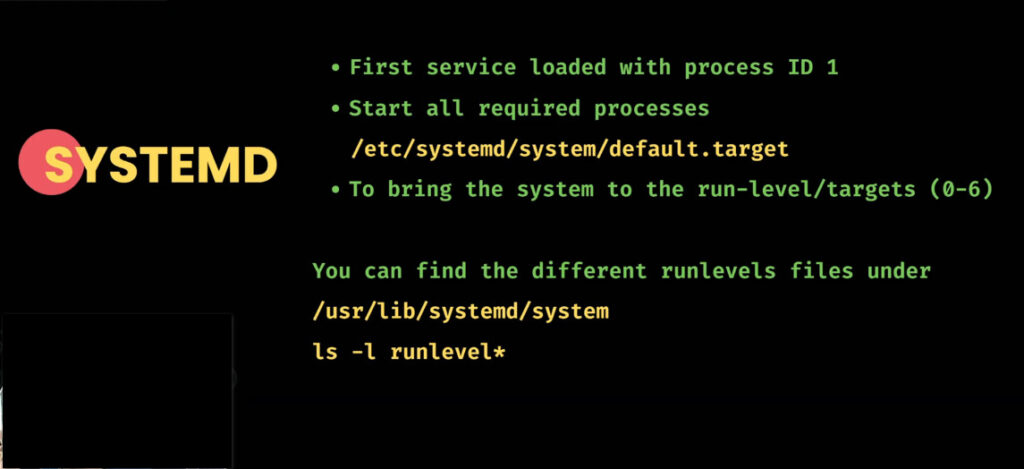

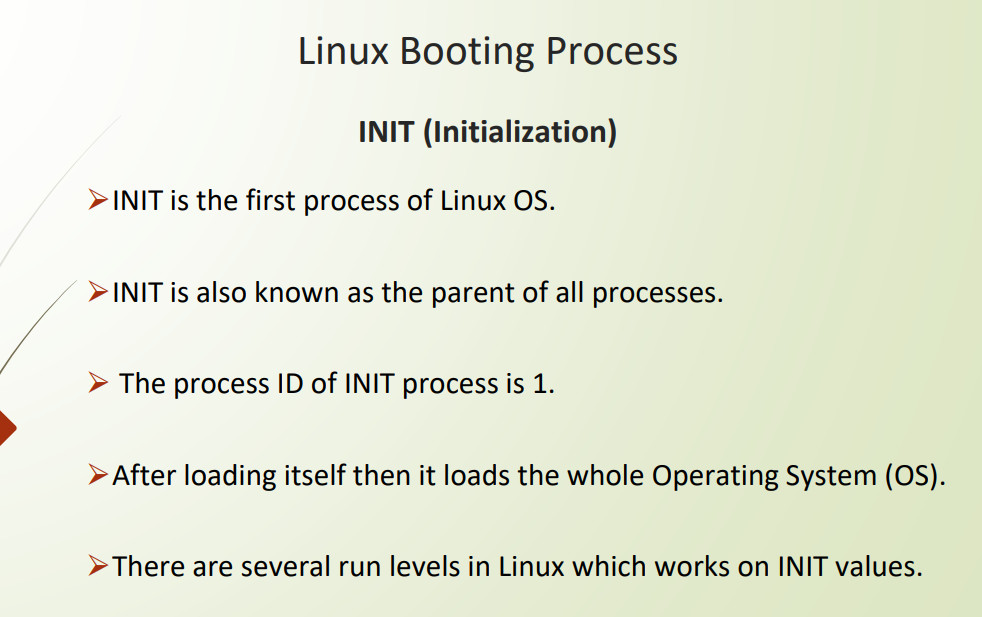

4. init (Systemd or Init Process)

  • Role: The init process is the first user-space program executed by the kernel and is responsible for initializing user-space components of the operating system. In modern Linux distributions, systemd is the default init system, but older systems may use the traditional SysVinit.

  • Actions:

    • The kernel hands control over to the init process (PID 1).
    • systemd (or another init system) initializes system services and manages system states.
    • Reading Configuration Files: The init process reads configuration files (e.g., /etc/fstab, /etc/systemd/system/) to determine which services to start.
    • Starting System Services: It starts the necessary system services, such as logging (syslog), network management (NetworkManager), system clocks, and others (like cron or sshd).

5. Mounting the Filesystems

  • Role: Once the root filesystem is mounted, the system proceeds to mount additional filesystems needed for the system to run. These filesystems might include network file systems, user directories, or special filesystems like proc and sysfs.

  • Actions:

    • Mounting filesystems defined in /etc/fstab, which might include local partitions (e.g., /home, /var), network mounts (e.g., NFS, CIFS), and special filesystems like procfs (/proc) and sysfs (/sys).
    • /proc: A virtual filesystem that contains process and system information.
    • /sys: A virtual filesystem that exposes kernel and hardware information.

6. Starting User Services and Daemons

  • Role: These are background processes that provide various services to the system. These services are essential for system functionality and user applications.

  • Actions:

    • User Services: Services defined by the init system (e.g., systemd, SysVinit) are started based on configuration files or scripts. These services can include:
      • Network services: Configuring network interfaces (via NetworkManager or static configuration).
      • Logging services: Starting system logging (e.g., rsyslog or journald).
      • File sharing and other services: Services like SSH (sshd), Apache (httpd), or database services.

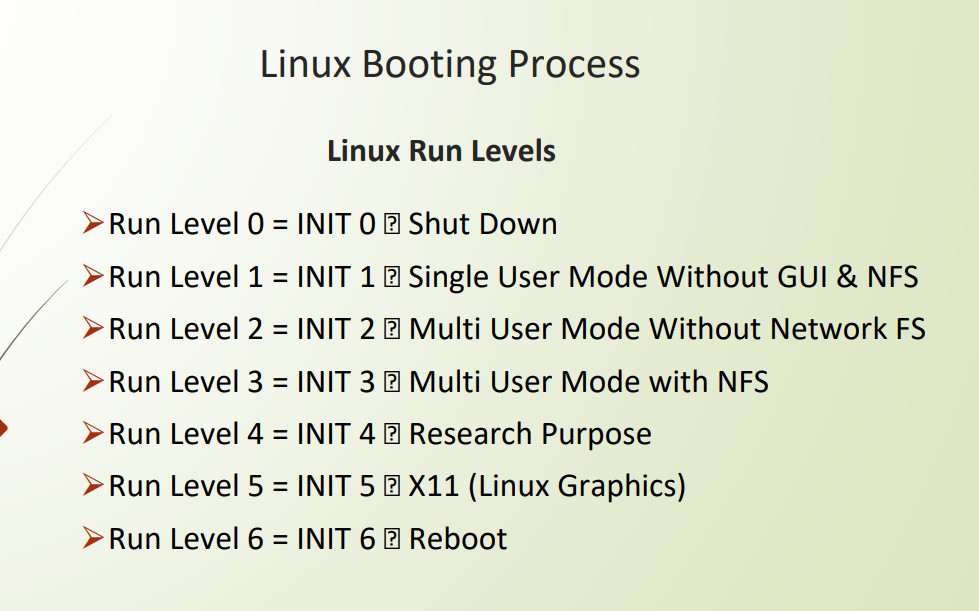

    • Systemd Targets/Runlevels: Depending on the init system used (e.g., systemd or SysVinit), the system will boot into a specific target (in systemd) or runlevel (in SysVinit) to determine which services are launched and which system state the system enters (multi-user, graphical, single-user, etc.).

7. Login Prompt (User Space)

  • Role: Once all the critical services and daemons are running, the system will present a login prompt for the user.

  • Actions:

    • If a graphical user interface (GUI) is enabled, the display manager (e.g., gdm, lightdm, sddm) will be started, showing a login screen for the user to authenticate.
    • If in console mode (non-GUI), the system will present a login prompt in the terminal where users can log in via the command line (using getty or agetty).

  • Example: A user logs in with a username and password. After successful authentication, a shell prompt appears or a GUI session begins.

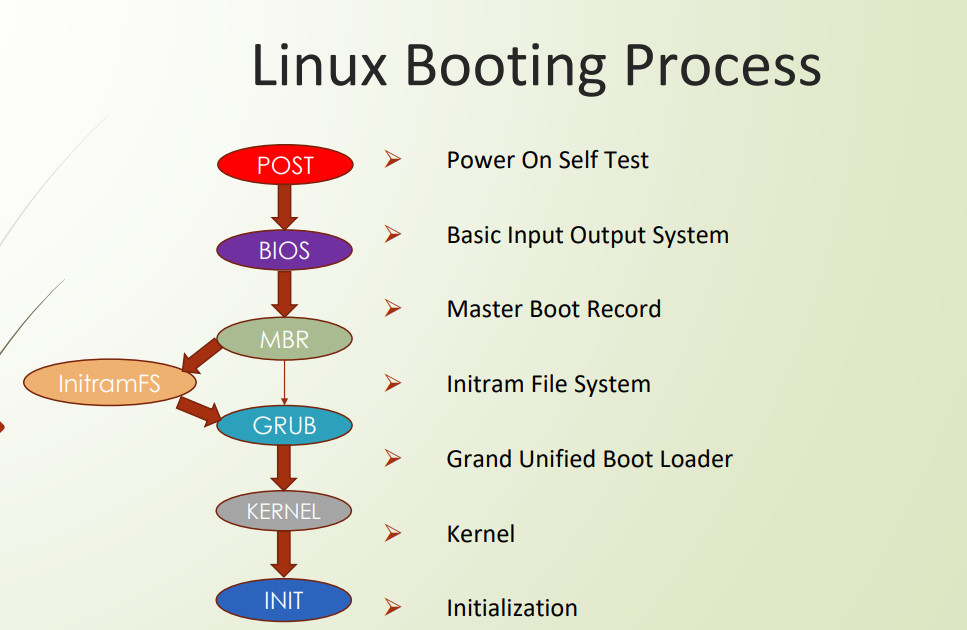

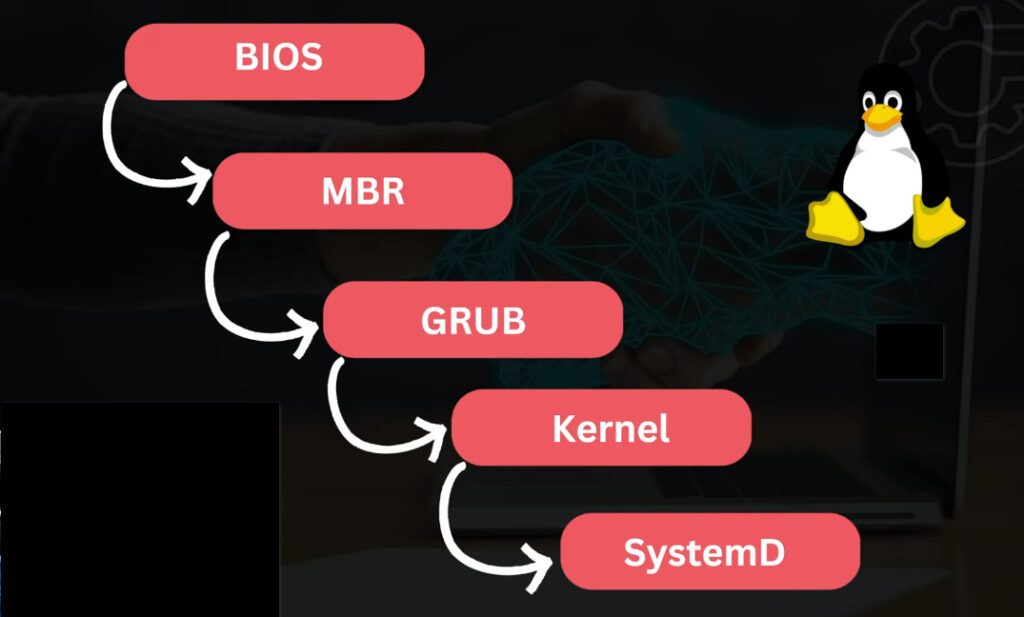

Summary of the Linux Boot Process

  1. BIOS/UEFI: Initializes hardware and finds the boot device.
  2. Bootloader (GRUB): Loads the Linux kernel and initrd (initial RAM disk).
  3. Kernel Initialization: Kernel is loaded, hardware initialized, and root filesystem is mounted.
  4. init (Systemd): First user-space program that starts system services.
  5. Mounting Filesystems: Mounts additional filesystems like /proc and /home.
  6. Starting User Services: Starts system and user-level services (network, logging, etc.).
  7. Login Prompt: User can log in and start interacting with the system.

This boot process ensures that a Linux system is properly initialized, all hardware is ready, and the necessary system services are running before users can log in and begin using the system.
