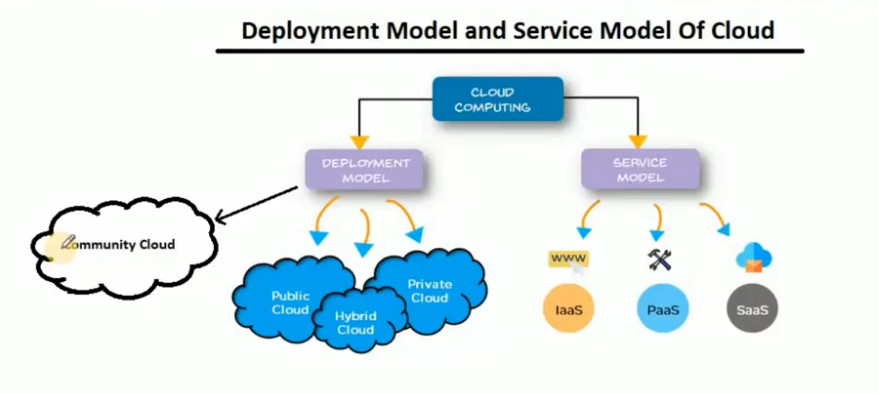

Deployment Models in Cloud Computing

In cloud computing, deployment models define how cloud resources are made available to users and organizations. These models determine the level of control, security, and access that users have to the cloud environment. The four primary deployment models are:

1. Public Cloud
2. Private Cloud
3. Hybrid Cloud
4. Community Cloud

Each model offers distinct advantages and is suitable for different use cases based on the organization’s needs, budget, and security requirements.

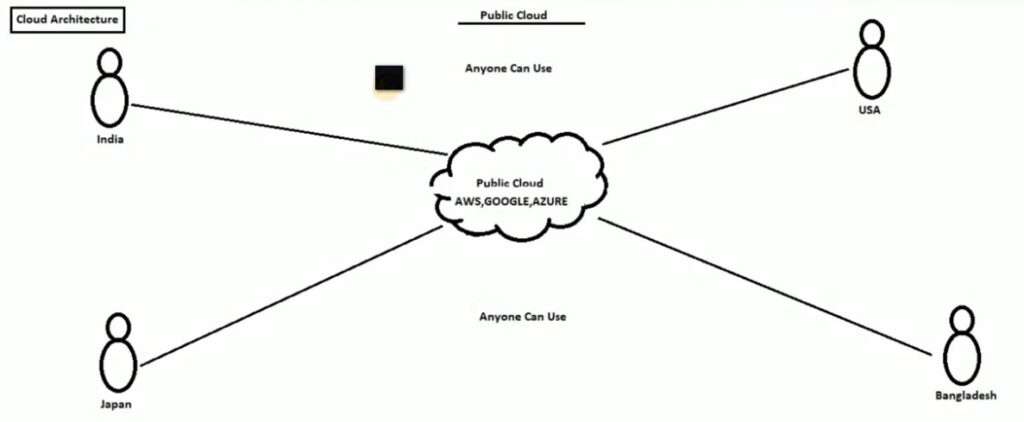

1. Public Cloud

• Definition: In the public cloud model, cloud services and infrastructure are owned and operated by a third-party cloud provider and made available to the general public or a large industry group. Resources (like servers, storage, and applications) are shared among multiple organizations (tenants).

• Key Features:

  • Shared Infrastructure: Resources are shared with multiple customers, but data and applications are isolated.
  • Scalable and Flexible: You can scale resources up or down depending on your needs, making it a cost-effective solution for businesses with fluctuating demands.
  • Pay-as-You-Go: Users only pay for the resources they consume, with no upfront costs for hardware.

• Examples:

  • Amazon Web Services (AWS)
  • Microsoft Azure
  • Google Cloud Platform (GCP)

• Use Cases:

  • Small to medium-sized businesses
  • Test and development environments
  • Public-facing applications (e.g., websites, mobile apps)

• Advantages:

  • Cost Efficiency: No need for upfront investments in hardware.
  • Scalability: Easily scale resources based on demand.
  • Maintenance-Free: The cloud provider manages all hardware and software maintenance.

• Disadvantages:

  • Security Concerns: Data is stored off-premises, which might be a concern for sensitive data or compliance regulations.
  • Less Control: Limited control over hardware and underlying infrastructure.

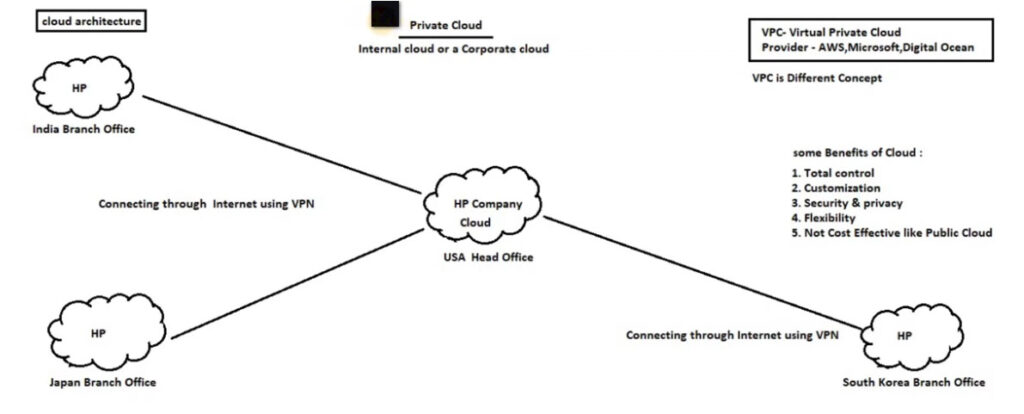

2. Private Cloud

• Definition: A private cloud is a cloud environment used exclusively by one organization. It can either be hosted on-premises (on the organization’s own hardware) or by a third-party provider. The key characteristic of the private cloud is that the infrastructure is dedicated to a single organization, providing more control over security, privacy, and performance.

• Key Features:

  • Exclusive Use: The infrastructure is not shared with other organizations, which improves security and performance.
  • Customizable: The cloud environment can be tailored to meet the specific needs of the organization (e.g., security, compliance).
  • On-Premise or Hosted: Can be managed within the organization’s own data center or hosted by third-party vendors.

• Examples:

  • VMware vSphere
  • OpenStack
  • Microsoft Azure Stack

• Use Cases:

  • Large enterprises with strict security, compliance, or performance requirements.
  • Organizations that need to manage sensitive data (e.g., financial or healthcare sectors).
  • Companies with legacy applications that require specific infrastructure.

• Advantages:

  • Enhanced Security: Greater control over the data and infrastructure, making it ideal for sensitive applications and data.
  • Customization: More flexibility to configure hardware and software according to specific business requirements.
  • Better Performance: Dedicated resources can lead to higher performance and reliability.

• Disadvantages:

  • Cost: More expensive than public clouds because the organization has to manage and maintain its own infrastructure.
  • Scalability: Not as easily scalable as public clouds, especially when infrastructure is on-premises.

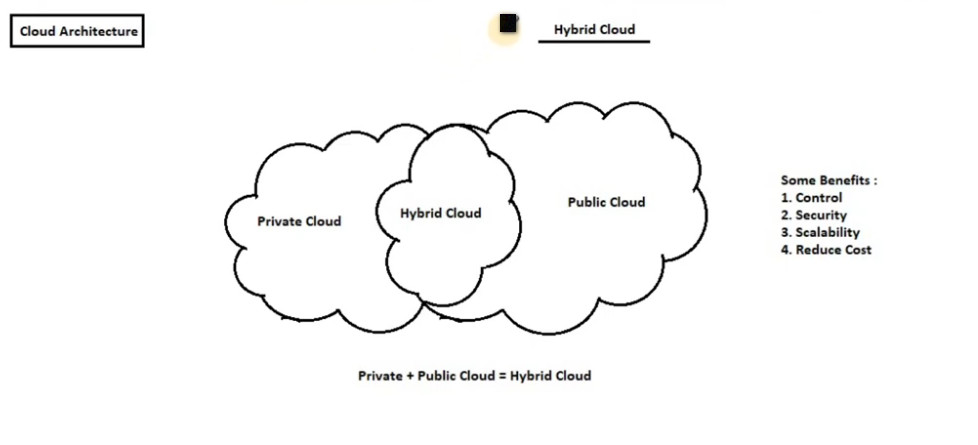

3. Hybrid Cloud

• Definition: The hybrid cloud model combines both public and private cloud environments, allowing data and applications to be shared between them. This model offers the flexibility to use the public cloud for less-sensitive workloads while maintaining private cloud resources for critical or sensitive data.

• Key Features:

  • Best of Both Worlds: Hybrid cloud allows businesses to take advantage of the scalability of public cloud while keeping sensitive data and critical applications in a private cloud.
  • Data and Application Portability: Applications and data can move seamlessly between private and public clouds based on business needs.
  • Flexible Resource Allocation: Organizations can scale their public cloud usage during peak times while relying on their private cloud for regular workloads.

• Examples:

  • AWS Hybrid Cloud Solutions (AWS Direct Connect)
  • Microsoft Azure Hybrid Cloud (Azure Arc, Azure Stack)
  • Google Cloud Anthos

• Use Cases:

  • Enterprises that need to maintain some level of on-premises infrastructure but want to take advantage of the cloud for scalability and flexibility.
  • Businesses with specific regulatory compliance or security requirements that mandate keeping certain data on-premises.
  • Organizations using cloud for disaster recovery or backup.

• Advantages:

  • Flexibility: Businesses can choose where to place their workloads based on security, performance, and cost.
  • Cost Efficiency: Use public cloud for scalable workloads and private cloud for sensitive applications.
  • Business Continuity: Can leverage the public cloud for disaster recovery while keeping critical applications in the private cloud.

• Disadvantages:

  • Complexity: Managing a hybrid cloud environment can be complex and requires coordination between on-premises and cloud systems.
  • Integration Challenges: Integration of on-premises and cloud systems can be challenging and requires good network connectivity and management tools.

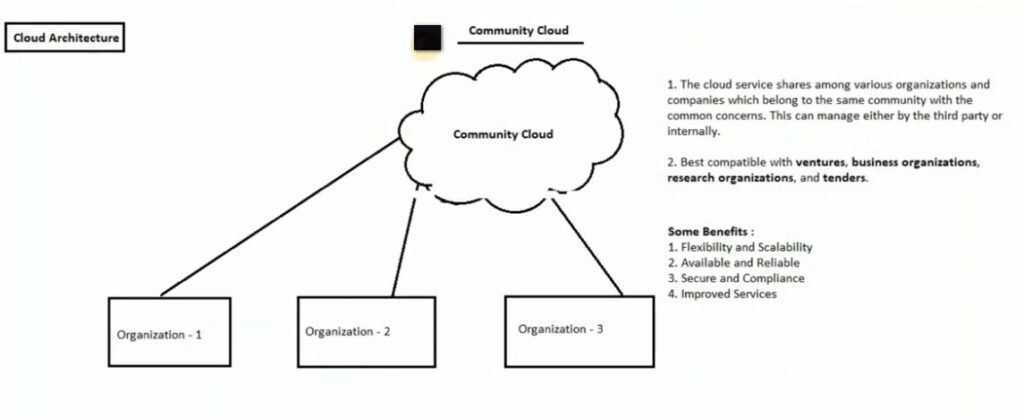

4. Community Cloud

• Definition: A community cloud is shared by several organizations with common concerns, such as security, compliance, or regulatory requirements. These organizations share the cloud infrastructure and resources while maintaining separate instances.

• Key Features:

  • Shared Resources: The infrastructure is shared by several organizations that have similar business interests or regulatory needs.
  • Collaboration: Community clouds are useful for projects or collaborations that involve multiple organizations, such as industry groups or government agencies.
  • Customizable: The cloud can be customized to meet the specific needs of the community.

• Examples:

  • Government cloud initiatives
  • Healthcare industry-specific cloud environments
  • Financial sector cloud solutions

• Use Cases:

  • Government agencies, healthcare organizations, or other industry-specific groups that need a collaborative cloud environment with shared resources.
  • Organizations that have similar regulatory or compliance requirements, such as financial institutions.

• Advantages:

  • Shared Costs: The cost of infrastructure is shared among multiple organizations, making it more affordable.
  • Tailored for Specific Needs: The cloud can be customized for the specific needs of the community, such as meeting industry regulations.

• Disadvantages:

  • Limited Control: While the infrastructure is shared, organizations may have less control over the cloud environment compared to a private cloud.
  • Complex Management: Shared resources may require more careful management to ensure data security and privacy across different organizations.

Summary of Cloud Deployment Models

Conclusion

The choice of cloud deployment model depends on an organization’s specific needs, including security, compliance, budget, scalability, and performance requirements. Public clouds are ideal for cost-effective, scalable solutions, while private clouds offer greater control and security. Hybrid clouds provide flexibility by allowing businesses to use both public and private cloud resources, and community clouds offer shared infrastructure for organizations with common concerns.
