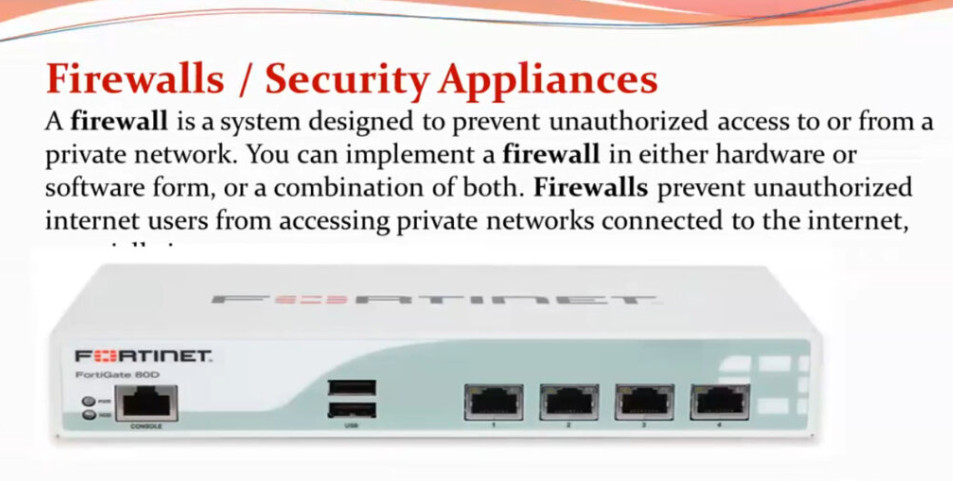

What is a Firewall?

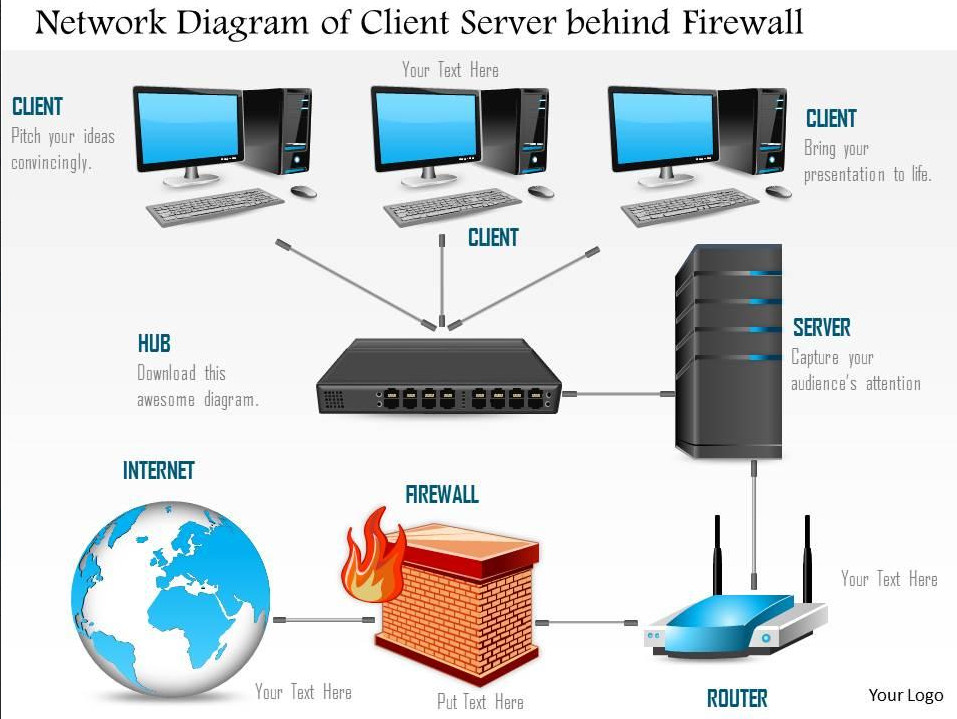

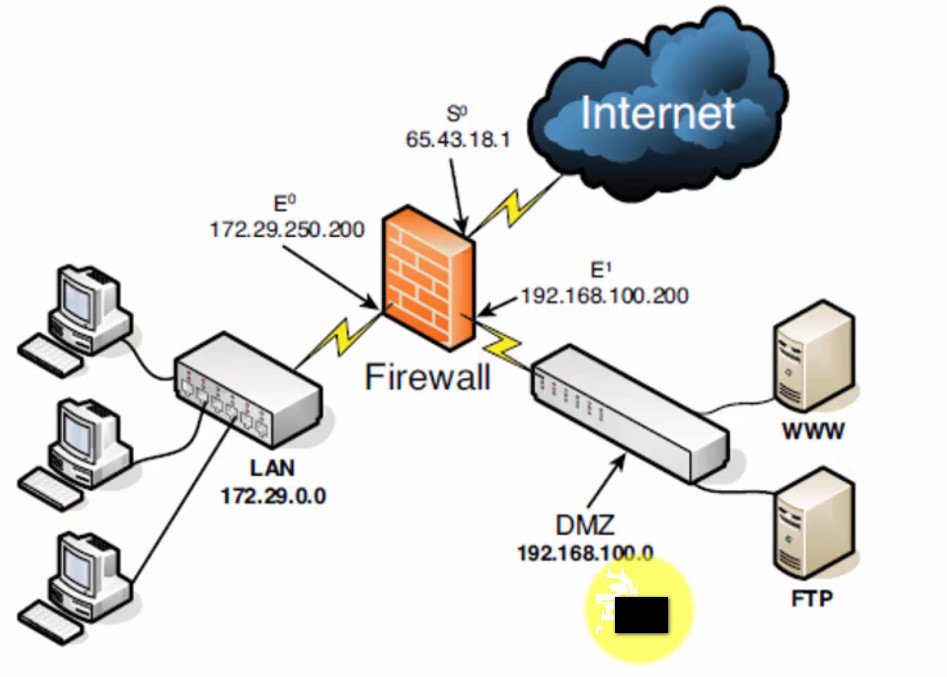

A firewall is a security system designed to monitor and control incoming and outgoing network traffic based on predetermined security rules. It acts as a barrier between a trusted internal network (such as a company’s private network or a home network) and an untrusted external network (such as the internet). The purpose of a firewall is to block or allow traffic based on security rules to protect the network from unauthorized access, cyberattacks, and other malicious activities.

Firewalls can be either hardware-based, software-based, or a combination of both, and they play a critical role in securing private networks by preventing unauthorized access, blocking malicious traffic, and ensuring the integrity and confidentiality of data.

Key Functions of a Firewall:

1. Traffic Filtering:

   • Firewalls examine incoming and outgoing data packets and decide whether to allow or block them based on the security rules set by the network administrator. These rules may be based on IP addresses, port numbers, protocols, or other factors.

2. Network Access Control:

   • Firewalls control which devices, services, or applications can communicate over the network. For example, they may block all external traffic except for web traffic (HTTP/HTTPS) on specific ports.

3. Preventing Unauthorized Access:

   • Firewalls block unauthorized access attempts to a network or device. They monitor network traffic and enforce rules to prevent hackers or malware from exploiting vulnerabilities.

4. Logging and Monitoring:

   • Many firewalls log traffic data and alert administrators to potential security incidents. This information helps identify suspicious activities or attacks like Distributed Denial of Service (DDoS) attempts or unauthorized access.

5. Virtual Private Network (VPN) Support:

   • Some firewalls support VPNs to securely connect remote users to a network, ensuring that data transmitted over the internet is encrypted and secure.

Types of Firewalls:

1. Packet-Filtering Firewall:

   • Definition: The simplest type of firewall that examines each data packet and determines whether it should be allowed or blocked based on the predefined rules.
   • How it works: It inspects the packet’s header (source and destination IP address, port number, and protocol type) and decides whether to allow or block the traffic.
   • Advantages:
     • Simple and fast.
     • Works well for basic filtering.
   • Disadvantages:
     • Does not inspect the content of the data packet (no deep packet inspection).
     • Vulnerable to certain types of attacks, like IP spoofing.
   • Example Use: Small networks or basic filtering of traffic based on IP and port.

2. Stateful Inspection Firewall:

   • Definition: A more advanced firewall that tracks the state of active connections and uses this information to make decisions about which packets to allow or block.
   • How it works: Instead of only looking at individual packets, it keeps track of the state of connections (e.g., TCP handshake, established connections) and allows or blocks packets based on the state of the connection.
   • Advantages:
     • More secure than packet-filtering firewalls because it understands the context of network traffic.
     • Protects against spoofing and other types of attacks.
   • Disadvantages:
     • More complex and resource-intensive than packet-filtering firewalls.
   • Example Use: Medium to large-sized networks where more security is required.

3. Proxy Firewall (Application Layer Firewall):

   • Definition: A firewall that operates at the application layer (Layer 7 of the OSI model) and acts as an intermediary between users and the services they want to access.
   • How it works: It acts as a proxy for requests to access services like websites, email servers, or databases. The firewall intercepts the communication and forwards it on behalf of the client, making the client’s requests and responses appear to come from the firewall itself.
   • Advantages:
     • Can block malicious content within the application data.
     • Provides deep inspection and can detect and block sophisticated attacks.
   • Disadvantages:
     • Slower than other types of firewalls due to the deep inspection of application data.
     • May require more resources and management.
   • Example Use: Protecting web servers and other application-based services by filtering HTTP, HTTPS, and other application-layer traffic.

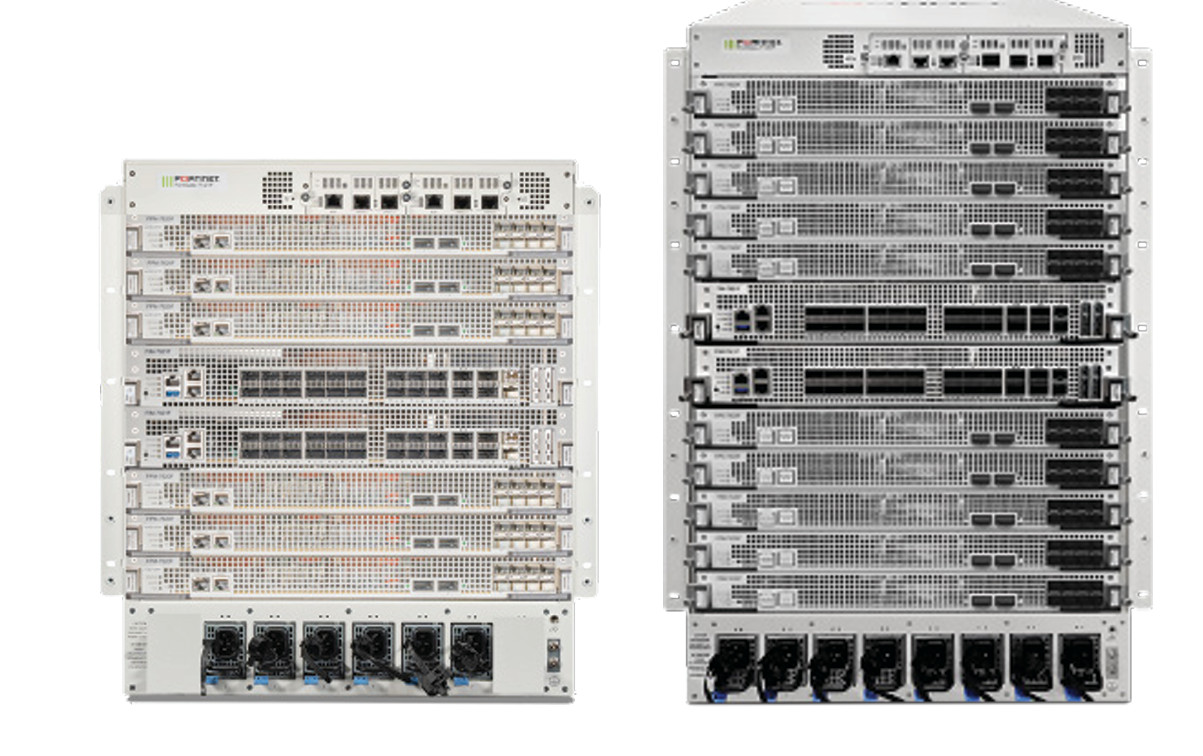

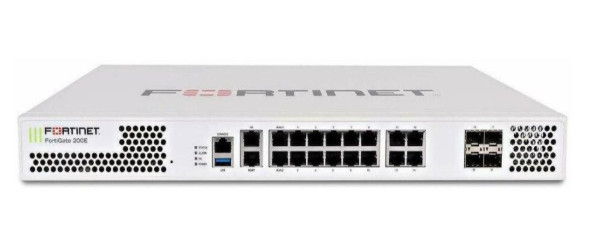

4. Next-Generation Firewall (NGFW):

   • Definition: A more advanced, feature-rich firewall that integrates multiple security features into a single device, such as stateful inspection, deep packet inspection, intrusion prevention systems (IPS), and application-level filtering.
   • How it works: NGFWs can analyze traffic at a deeper level and provide protections against modern threats like malware, application-layer attacks, and encrypted traffic. They can also integrate with other security tools for comprehensive threat management.
   • Advantages:
     • Combines multiple security features in one device.
     • Provides deeper visibility into network traffic and advanced threat protection.
   • Disadvantages:
     • More expensive and resource-intensive than simpler firewalls.
     • Requires regular updates and configuration to stay effective against evolving threats.
   • Example Use: Large enterprises or organizations with complex security needs.

5. Unified Threat Management (UTM) Firewall:

   • Definition: A comprehensive security solution that includes multiple security features, such as a firewall, antivirus, anti-malware, intrusion detection/prevention, VPN support, and more, all integrated into a single device.
   • How it works: UTM firewalls combine multiple security functions in one appliance, offering a more holistic approach to protecting a network from a variety of threats.
   • Advantages:
     • Simplifies network security by consolidating various functions into a single device.
     • Provides an all-in-one solution for small and medium-sized businesses.
   • Disadvantages:
     • May not provide the same level of performance or customization as specialized, standalone security appliances.
   • Example Use: Small to medium-sized businesses looking for a simplified, cost-effective security solution.

6. Cloud Firewall (Firewall as a Service – FWaaS):

   • Definition: A firewall deployed in the cloud, rather than on-premises, offering scalable, cloud-based protection for networks, applications, and users.
   • How it works: It monitors and filters network traffic to and from cloud-based services, applications, and resources. Cloud firewalls can provide centralized security for distributed and remote networks.
   • Advantages:
     • Scalable and easy to deploy in cloud environments.
     • Can protect cloud-hosted infrastructure and applications.
   • Disadvantages:
     • May require internet connectivity to function properly.
     • Might have latency issues compared to on-premises solutions.
   • Example Use: Protecting cloud-based infrastructures, applications, and data in public or hybrid cloud environments.

Summary of Firewall Types:

• Packet-Filtering Firewall: Basic filtering based on packet headers (IP address, port number, etc.). Fast but limited in functionality.
• Stateful Inspection Firewall: Tracks connection states for better security and context-awareness.
• Proxy Firewall (Application Layer): Inspects and filters traffic at the application layer, providing deeper security.
• Next-Generation Firewall (NGFW): Combines multiple security features (e.g., deep packet inspection, IPS) for advanced threat protection.
• Unified Threat Management (UTM): An all-in-one security solution, integrating multiple features like antivirus, anti-malware, and VPN into a single device.
• Cloud Firewall (FWaaS): A cloud-based firewall solution for securing cloud resources and infrastructure.

Conclusion:

Firewalls are essential in network security, controlling access to and from networks based on predefined rules. Depending on the complexity and size of the network, organizations can choose from various types of firewalls, ranging from simple packet-filtering firewalls to sophisticated next-generation firewalls that offer a broad spectrum of security features. Each type provides varying levels of protection, performance, and flexibility.
