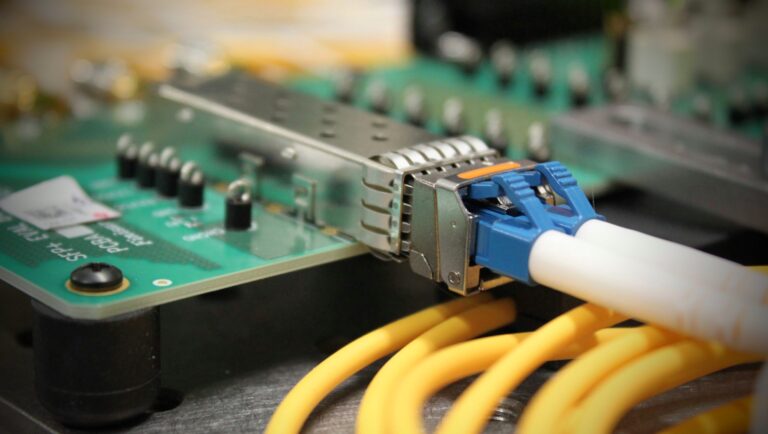

SFP Module SFP (Small Form-factor Pluggable) and QSFP (Quad Small Form-factor Pluggable) are both types of transceiver modules used in networking and telecommunications. They are used to transmit and receive data over fiber optic or copper cables and are commonly found in devices like switches, routers, and network interface cards (NICs).Here’s a breakdown of each: SFP (Small Form-factor Pluggable):Form Factor: Compact and small; typically used for single or dual-lane high-speed data transmission.Data Rate: SFP modules generally support speeds from 1 Gbps to 25 Gbps, though newer versions can go up to 100 Gbps with specific variants like SFP28. Transmission: SFP modules support both fiber optic (for longer distances) and copper (for shorter distances) connections.Common Use: Often used for Ethernet, Fibre Channel, and SONET/SDH networks. They come in different types like SFP, SFP+, SFP28 depending on the required speed. QSFP (Quad Small Form-factor Pluggable):Form Factor: Larger than SFP, designed for higher data rates. The "Quad" in QSFP refers to the fact that it can handle four data lanes.Data Rate: QSFP modules typically support 40 Gbps, 100 Gbps, and even 400 Gbps (with newer variants such as QSFP56 and QSFP112). This makes QSFP a higher-capacity option compared to SFP. Transmission: Like SFP, QSFP can also use both fiber optic and copper cables, depending on the specific module variant.Common Use: QSFP is commonly used in high-bandwidth data center and telecom applications, including 40GbE, 100GbE, and 400GbE Ethernet standards. Key Differences:Speed: QSFP typically supports higher speeds (40Gbps and above), while SFP is more commonly used for lower-speed links (up to 25Gbps or 10Gbps in many cases).Form Factor: QSFP is physically larger due to the higher data rate it supports, whereas SFP is smaller and more compact.Application: SFP is widely used for medium to low-speed connections, while QSFP is used for high-performance, data-intensive applications. In short, SFP is a smaller, lower-speed transceiver standard, while QSFP is a larger, higher-speed standard typically used in high-performance networking environments.There are various types of SFP (Small Form-factor Pluggable) modules, each designed to meet different networking requirements. These types are primarily based on their data rates, transmission media (fiber or copper), and specific applications.Here’s a breakdown of the main types of SFP modules:1. SFP (1 Gbps)Data Rate: 1 GbpsTransmission Type: Used for Gigabit Ethernet and other 1G networks.Common Use: Ethernet, Fibre Channel, SONET/SDH.Media: Can be used with fiber optic or copper cables.2. SFP+ (10 Gbps)Data Rate: 10 GbpsTransmission Type: Primarily for 10 Gigabit Ethernet networks.Common Use: Ethernet, Fibre Channel, 10G Ethernet.Media: Available for both fiber optic (single-mode or multi-mode) and copper cables (Direct Attach Copper (DAC) for short-range connections).Popular Versions:10G SR (Short Range) – for multimode fiber up to ~300 meters.10G LR (Long Range) – for single-mode fiber up to ~10 km.10G ER (Extended Range) – for single-mode fiber up to ~40 km.10G ZR – for longer distances with enhanced reach (up to 80 km).3. SFP28 (25 Gbps)Data Rate: 25 GbpsTransmission Type: Used for 25 Gigabit Ethernet and other high-speed applications.Common Use: Data centers, High-performance computing (HPC).Media: Primarily for fiber optic but also supports copper cables.Popular Versions:SFP28 SR – short-range for multimode fiber.SFP28 LR – long-range for single-mode fiber.4. QSFP (40 Gbps)Data Rate: 40 Gbps (though newer versions of QSFP, like QSFP28, support 100 Gbps)Transmission Type: For high-speed Ethernet networks, commonly used in data centers.Common Use: 40GbE Ethernet, Infiniband, Fibre Channel.Media: Fiber optic and sometimes copper cables (Direct Attach Copper).QSFPDD 400Gig5. SFP+ Direct Attach Copper (DAC)Data Rate: Typically 10 GbpsTransmission Type: Uses copper cables (usually twinaxial) for short-range connections.Common Use: Interconnecting devices within the same rack or within a few meters.Media: Copper cables, typically for short distances (up to 7 meters).6. SFP+ AOC (Active Optical Cable)Data Rate: Typically 10 Gbps or 25 GbpsTransmission Type: Active fiber optic cable with an integrated SFP+ transceiver.Common Use: Used when fiber is required for medium distances, especially for inter-rack connections.Media: Fiber optic.7. SFP-IR (Intermediate Range)Data Rate: 1 Gbps to 10 GbpsTransmission Type: Used for fiber optic communication for medium distances (up to 10 km depending on the version).Common Use: Used in long-range communication, often for SONET/SDH applications.Popular Versions:SFP+ IR for 10 Gbps.SFP IR for 1 Gbps.8. SFP for Different Wavelengths (WDM)Data Rate: Varies (usually 1 Gbps to 10 Gbps)Transmission Type: These are designed to use Dense Wavelength Division Multiplexing (DWDM) or CWDM (Coarse Wavelength Division Multiplexing) for more efficient use of fiber by sending multiple wavelengths (channels) through the same fiber.Common Use: High-capacity, long-distance applications.9. SFP+ LR (Long Range)Data Rate: 10 GbpsTransmission Type: Designed for long-range single-mode fiber.Common Use: 10GbE long-distance connections, such as in wide-area networks (WAN).Typical Range: Up to 10 km.10. SFP+ SR (Short Range)Data Rate: 10 GbpsTransmission Type: Designed for multimode fiber connections for short distances.Common Use: 10GbE connections within a data center.Typical Range: Typically up to 300 meters on multimode fiber.11. SFP+ ER (Extended Range)Data Rate: 10 GbpsTransmission Type: Used for single-mode fiber with an extended range.Common Use: Long-range networking (up to 40 km).Typical Range: 30-40 km.Summary of Common SFP Module Types by Data Rate and Range:Module TypeData RateRange/DistanceCommon UseSFP1 GbpsShort-range (fiber or copper)1G Ethernet, Fibre ChannelSFP+10 GbpsUp to 300m (multi-mode)10G Ethernet, Fibre ChannelSFP2825 GbpsUp to 100m (multi-mode)25G Ethernet, High-performance computingSFP+ DAC10 GbpsShort-range (up to 7m)Inter-rack short-distance connectionsSFP+ AOC10 Gbps, 25 GbpsMedium-range (up to 100m)Long-distance within data centersQSFP+40 Gbps100m to 10 km (fiber optic)High-speed data center EthernetSFP+ LR10 GbpsUp to 10 km (single-mode)Long-range Ethernet, WANSFP+ SR10 Gbps300m (multi-mode)Short-range Ethernet, Data centerSFP+ ER10 GbpsUp to 40 km (single-mode)Extended-range Ethernet connectionsConclusion:Each SFP module type is designed for different use cases based on data rate, distance, and network type. The most common are the SFP (1 Gbps), SFP+ (10 Gbps), and SFP28 (25 Gbps) for fiber optic or copper cable connections in various network environments. When selecting an SFP module, it’s important to consider the required speed, distance, and the type of cable (fiber or copper) being used in your network setup. When referring to SFP modules and wavelengths, the "nm" (nanometer) typically refers to the wavelength of the light signal used for transmitting data over fiber optic connections. The wavelength of the signal is important because it determines how the light travels through the fiber and the distance over which it can reliably transmit data.Different SFP modules operate at different wavelengths depending on the type of fiber (single-mode or multi-mode) and the range (distance) they are designed to support.Common Wavelengths (nm) for SFP Modules:850 nm (near-infrared)Common Use: Multi-mode fiberTypical Modules: SFP, SFP+ SR (Short Range)Data Rates: Often 1 Gbps to 10 GbpsRange: Typically up to 300 meters for SFP+ SR on multi-mode fiberDescription: This wavelength is used for short-range communications over multi-mode fiber (MMF), often in data center or enterprise networks.1310 nm (infrared)Common Use: Single-mode fiber and sometimes multi-mode fiberTypical Modules: SFP+ LR (Long Range), SFP+ ER (Extended Range)Data Rates: 1 Gbps to 10 Gbps and higherRange: Can range from 10 km to 40 km or more (depending on module and fiber quality)Description: A commonly used wavelength for longer-range transmissions over single-mode fiber (SMF). It is often used for longer-distance Ethernet links, such as in WAN or fiber backbone applications.1550 nm (infrared)Common Use: Single-mode fiberTypical Modules: SFP+ ZR (Extended Range), SFP-ER (Extended Reach)Data Rates: 1 Gbps, 10 Gbps, and aboveRange: Up to 80 km or more with single-mode fiberDescription: This wavelength is often used for very long-distance transmission and is typically deployed in telecom and fiber-optic backbone applications. It's commonly used in Dense Wavelength Division Multiplexing (DWDM).1264.5 nm to 1337.5 nm (CWDM - Coarse Wavelength Division Multiplexing)Common Use: Single-mode fiberTypical Modules: CWDM SFP (Coarse Wavelength Division Multiplexing)Data Rates: Usually 1 Gbps to 10 GbpsRange: Varies, typically up to 80 km depending on the specific CWDM channel.Description: CWDM modules utilize multiple wavelengths (channels) within the 1264.5 nm to 1337.5 nm range to send multiple data streams over the same fiber, significantly increasing the fiber's capacity.DWDM (Dense Wavelength Division Multiplexing)Common Use: Single-mode fiberTypical Modules: DWDM SFP and SFP+ DWDMData Rates: 1 Gbps, 10 Gbps, and sometimes 100 GbpsRange: Can span over hundreds of kilometers depending on the fiber and module used.Description: DWDM uses a dense set of wavelengths (typically from 1525 nm to 1565 nm) for very high-capacity long-distance transmission. DWDM technology is mainly used in large-scale telecom networks and fiber optic backbones.Summary of Common SFP Wavelengths (nm) and Their Uses:Wavelength (nm)Common UseFiber TypeTypical Module TypesRange/Distance850 nmShort-range, data centerMulti-mode fiberSFP, SFP+ SRUp to 300 meters1310 nmLong-range, telecom, data centersSingle-mode fiberSFP+ LR, SFP+ ER10 km to 40 km (single-mode)1550 nmVery long-range, telecom backboneSingle-mode fiberSFP+ ZR, SFP-ER40 km to 80+ km1264.5 to 1337.5 nm (CWDM)Multiple wavelengths over a single fiberSingle-mode fiberCWDM SFP40 km to 80+ km1525 to 1565 nm (DWDM)High-capacity, long-range telecomSingle-mode fiberDWDM SFP, SFP+ DWDMHundreds of kilometersConclusion:850 nm is used for short-range multimode connections (data centers, short-haul Ethernet).1310 nm is used for long-range single-mode connections (Ethernet over greater distances, telecom).1550 nm is used for extended range, long-distance telecom and backbone networks.CWDM and DWDM wavelengths are used for multiplexing multiple data streams over a single fiber, significantly increasing the capacity and distance.The wavelength selection depends on your network's requirements for distance, fiber type (single-mode or multi-mode), and data rate.https://course.saikatinfotech.com/wp-content/uploads/2024/11/Test-video-SFP-10g-Sr-SFP-Fiber-Optic-Transceiver-Module-10g-850nm-300m-Multimode-LC-Ddm-Modules.mp4
