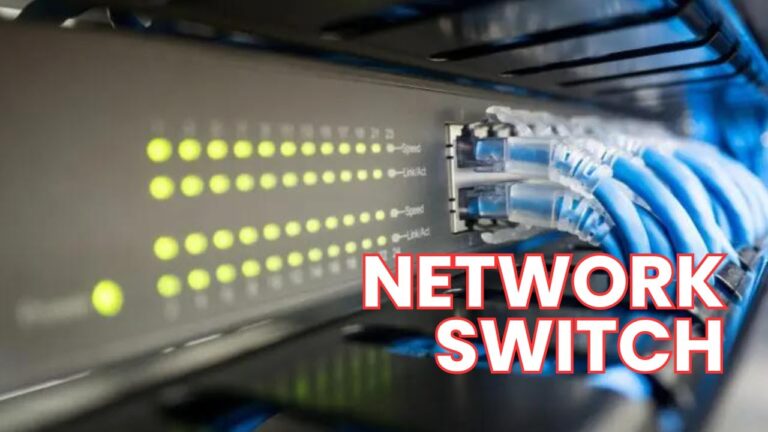

Network Switch Overview A switch is a networking device used to connect multiple devices (such as computers, printers, servers, etc.) within a local area network (LAN). It operates at Layer 2 (Data Link Layer) of the OSI model, although some switches can also operate at Layer 3 (Network Layer) if they include routing capabilities.Key Functions of a Switch:Forwarding Data: A switch forwards data packets between devices on the same network based on their MAC (Media Access Control) addresses. Unlike a hub, which broadcasts data to all connected devices, a switch only sends data to the specific device that needs it, improving efficiency.Learning MAC Addresses: When a switch first receives a data frame, it doesn't know which device (MAC address) the frame is meant for. However, as devices communicate, the switch "learns" the MAC address of each device and stores this information in a MAC address table (also called a forwarding table). The switch uses this table to make more efficient forwarding decisions in the future.Segmentation and Collision Domains: Each port on a switch creates a separate collision domain, meaning that devices connected to different ports won't interfere with each other’s transmissions, unlike hubs where all connected devices share a single collision domain. This leads to better network performance and less congestion.VLAN Support: Switches can be configured to support Virtual LANs (VLANs), which allow network administrators to segment a single physical network into multiple logical networks, enhancing security, performance, and organization.Full-Duplex Communication: Modern switches support full-duplex communication, which means devices can send and receive data simultaneously over each port, unlike half-duplex communication used in older networking devices like hubs.Types of Switches:Unmanaged Switch:A basic, plug-and-play device with no configuration options.Typically used in home networks or small office environments where simple connectivity is needed.Doesn't support advanced features like VLANs or QoS (Quality of Service).Managed Switch:Offers advanced features like VLANs, port security, traffic monitoring, and Quality of Service (QoS).Can be configured and monitored via a web interface, command-line interface (CLI), or SNMP (Simple Network Management Protocol).Typically used in larger or enterprise networks where control over traffic flow, security, and performance is needed.Layer 3 Switch (Multilayer Switch):A Layer 3 switch combines the functionality of both a switch and a router.It can perform IP routing between different VLANs (Inter-VLAN Routing), making it capable of handling routing functions while maintaining the high-speed switching capabilities of Layer 2.Often used in larger networks to route traffic between VLANs without requiring a separate router.PoE Switch (Power over Ethernet):Provides power to connected devices (such as IP cameras, phones, and wireless access points) over the Ethernet cables.Eliminates the need for additional power supplies for devices that support PoE, simplifying cable management and reducing infrastructure costs.Switch vs. Hub:Hub: A hub is a simpler, less intelligent device that simply broadcasts data to all devices connected to it. It doesn't learn MAC addresses or segment the network, which can lead to network congestion and performance issues.Switch: A switch intelligently forwards data only to the correct destination device, based on its MAC address, making it more efficient and secure than a hub.Switch vs. Router:Switch: Operates at Layer 2 (Data Link Layer) and deals with local traffic within a single network. A switch is used to connect devices within a LAN.Router: Operates at Layer 3 (Network Layer) and is responsible for directing data between different networks, such as between a local network (LAN) and the internet (WAN). Routers also handle tasks like IP addressing and packet forwarding based on IP addresses.Summary:In short, a switch is a crucial component of modern networks, enabling devices to communicate efficiently by forwarding data based on MAC addresses. Switches provide better performance, reliability, and security compared to older network devices like hubs. Managed switches offer additional flexibility and control, while Layer 3 switches also provide routing capabilities.Type of Network SwitchesNetwork switches come in various types, each designed to fulfill specific roles and provide different capabilities based on the needs of the network. Below are the main types of network switches, each with unique features and functions:1. Unmanaged SwitchDescription: An unmanaged switch is a basic plug-and-play device with no configuration options. It’s suitable for simple networks where minimal configuration and control are needed.Features:No setup or configuration required.Operates out of the box as soon as it's connected.Limited functionality (does not support VLANs, security features, or network monitoring).Generally used in small offices, home offices, or networks where simplicity and low cost are key priorities.Use Case: Small home or office networks, or temporary setups where ease of use is important.Example: A simple 5-port or 8-port switch in a home network.2. Managed SwitchDescription: A managed switch provides more control over the network, allowing for customization, security, and performance management. It can be configured and monitored, typically through a web interface, CLI, or SNMP.Features:VLAN Support: Enables network segmentation and security.Traffic Monitoring: Can track traffic flows and usage patterns.QoS (Quality of Service): Prioritizes certain types of traffic (e.g., voice, video).Port Mirroring: Helps with network diagnostics and monitoring.Access Control Lists (ACLs): Improves security by controlling which devices can access certain parts of the network.Redundancy Features: Supports features like Spanning Tree Protocol (STP) for preventing network loops.Use Case: Enterprises or networks that require fine-grained control, monitoring, security, and network optimization.Example: A Cisco Catalyst switch, or HP Aruba switch.3. Layer 3 Switch (Multilayer Switch)Description: A Layer 3 switch performs both Layer 2 switching and Layer 3 routing functions, making it a hybrid device. It can route traffic between different VLANs (Inter-VLAN Routing) and offer high-speed switching at Layer 2.Features:Supports IP Routing: Routes traffic between different subnets or VLANs.Advanced Routing Protocols: Supports protocols like OSPF, RIP, or BGP (for larger networks).Offers the high-speed switching advantages of Layer 2 with routing capabilities to direct traffic between multiple VLANs.Use Case: Large enterprise networks that need to route traffic between VLANs but don’t want to use a separate router.Example: Cisco Catalyst 3850, Juniper EX Series.4. PoE Switch (Power over Ethernet Switch)Description: A PoE switch supplies electrical power to connected devices (like IP cameras, phones, or wireless access points) over the same Ethernet cable used for data transmission. This eliminates the need for separate power supplies for these devices.Features:Delivers power to devices such as IP phones, security cameras, wireless access points, and sensors.Simplifies installation by reducing the need for additional power outlets or adapters.Often supports IEEE 802.3af (PoE) or IEEE 802.3at (PoE+) standards for power delivery.Use Case: Environments that require power to devices like VoIP phones, security cameras, and access points, where providing separate power lines would be inconvenient.Example: Cisco Catalyst PoE switches, Ubiquiti UniFi PoE switches.5. Stackable SwitchDescription: A stackable switch allows multiple switches to be physically connected and managed as a single unit. The switches can be stacked via special cables or ports and act as a single logical switch to improve scalability and fault tolerance.Features:Multiple physical switches are connected together and can be managed as one entity.Increases port density without needing to manage each switch individually.Often used to create a scalable network where additional ports are needed.Supports stacking protocols for failover and redundancy.Use Case: Medium to large networks that need high availability and easy scalability.Example: Cisco StackWise, HPE Aruba 5400R.6. Industrial SwitchDescription: An industrial switch is designed for use in harsh or challenging environments where high durability, extended temperature ranges, and ruggedness are required.Features:Designed to operate in extreme temperatures, high humidity, or environments with dust, vibration, and other challenging conditions.Often used in manufacturing plants, oil rigs, transportation systems, or other industrial settings.May have IP ratings (Ingress Protection) for dust and water resistance.Use Case: Manufacturing plants, warehouses, outdoor installations, or any environment requiring rugged, reliable networking hardware.Example: Cisco Industrial Ethernet 3000 Series, Siemens Scalance.7. Core SwitchDescription: A core switch is a high-performance switch used in the central part of a network (the "core" layer) to aggregate traffic from multiple distribution switches and route it across the network. Core switches are designed to provide fast, high-capacity data forwarding.Features:Extremely high throughput and low latency.Supports high redundancy and fault tolerance to ensure network reliability.Often integrates with high-speed routing and switching capabilities.Use Case: Large enterprise or data center networks where high-speed, high-capacity backbone switching is needed.Example: Cisco Nexus 9000 series, Arista 7000 series.8. Edge SwitchDescription: An edge switch is typically located at the network's edge, connecting end-user devices like computers, printers, or servers to the network. It serves as a point of access for the devices in the local area network (LAN).Features:Connects user devices to the network.May support lower throughput and fewer features compared to core switches.Can provide Power over Ethernet (PoE) for devices like phones and access points.Use Case: Smaller offices or departments where devices connect to the network but do not require high-speed backhaul.Example: A small office switch that connects workstations and printers.9. Virtual Switch (vSwitch)Description: A virtual switch is used in virtualized environments (like VMware, Hyper-V, or KVM) to allow virtual machines (VMs) to communicate with each other and with external networks. It functions as a software-based switch within a virtualized infrastructure.Features:Operates in virtual environments and can be managed using hypervisor interfaces.Provides network connectivity between VMs and physical networks.Can implement features like VLANs, security, and traffic management.Use Case: Data centers, cloud computing environments, or virtualized environments where VMs need to communicate with each other and with physical networks.Example: VMware vSwitch, Microsoft Hyper-V Virtual Switch.Summary of Switch Types:Switch TypeDescriptionPrimary Use CaseUnmanaged SwitchBasic, plug-and-play switch with no configuration.Small offices, home networks.Managed SwitchSwitch with advanced configuration options (VLANs, QoS, etc.)Enterprise networks requiring control, security, and monitoring.Layer 3 SwitchSwitch with routing capabilities (Inter-VLAN routing).Large networks needing both switching and routing in one device.PoE SwitchSwitch that provides power over Ethernet to devices.Environments with devices like IP cameras, phones, and APs.Stackable SwitchMultiple switches connected and managed as a single unit.Networks that require scalability and redundancy.Industrial SwitchRugged switch for use in harsh environments.Manufacturing plants, outdoor or industrial environments.Core SwitchHigh-performance switch used in the core of a network.Large enterprise or data center backbone.Edge SwitchSwitch used to connect end-user devices to the network.Small to medium office networks, access layer.Virtual Switch (vSwitch)Software-based switch in virtualized environments.Data centers and cloud environments.Each type of switch is designed to meet different network needs, from simple home setups to complex enterprise networks with specific performance, security, and redundancy requirements. Cisco Nexus 9800 Series Switches 36-port 400G Line Card Netgear M4300 Stackable Managed Switch with 48x10G PoE Switch - Data + Power https://course.saikatinfotech.com/wp-content/uploads/2024/11/Test-video-SFP-10g-Sr-SFP-Fiber-Optic-Transceiver-Module-10g-850nm-300m-Multimode-LC-Ddm-Modules.mp4
