RG6, RG59, and Coaxial 3+1 Cable: Differences and Applications

Coaxial cables, commonly referred to as RG6, RG59, and Coaxial 3+1 cables, are essential in various communication and video systems, including CCTV installations, cable TV, and internet connections. Let’s take a look at these three types of coaxial cables, their features, uses, and differences.

1. RG6 Coaxial Cable

Description:

RG6 is a thicker, high-performance coaxial cable compared to RG59. It is commonly used for modern cable TV systems, satellite TV, and broadband internet connections. RG6 cables are designed for higher-frequency transmissions, providing better performance over longer distances.

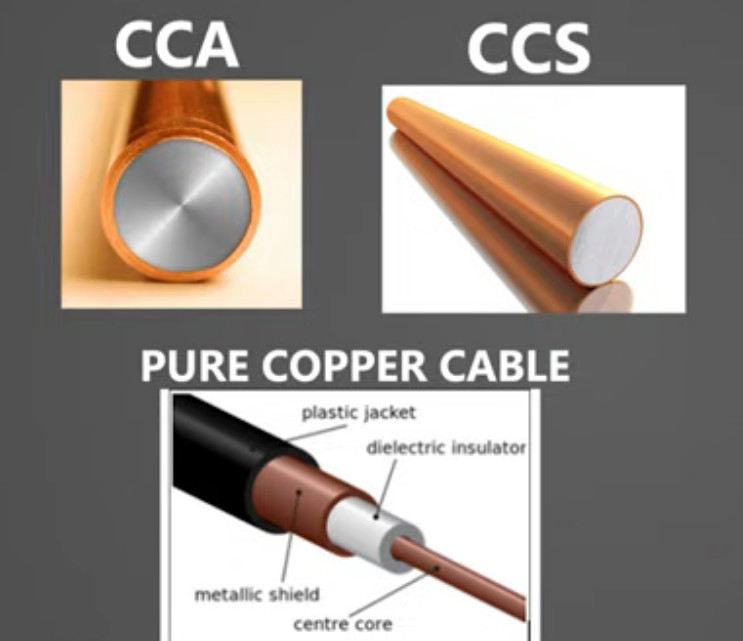

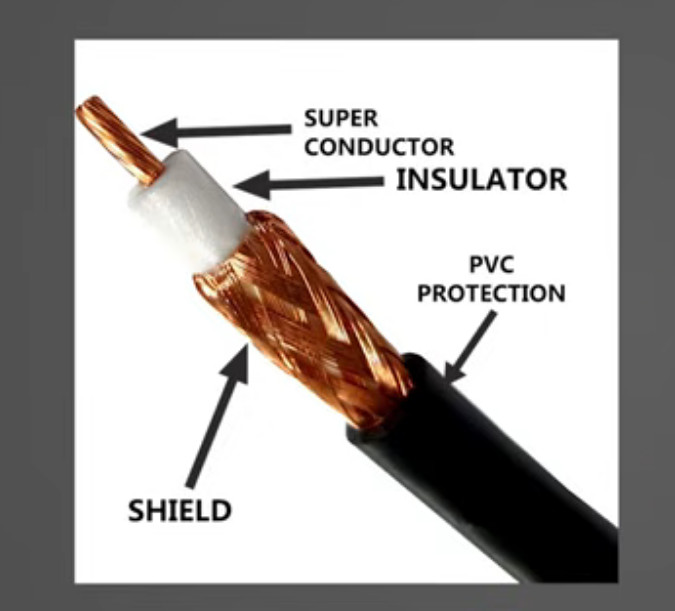

Construction:

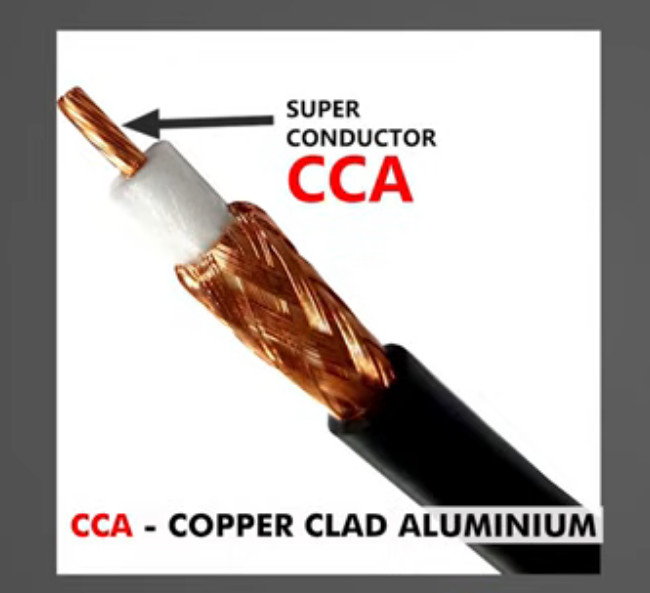

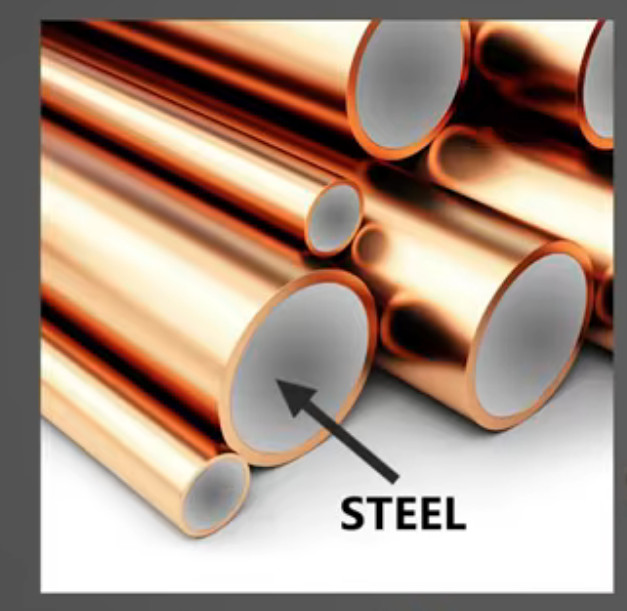

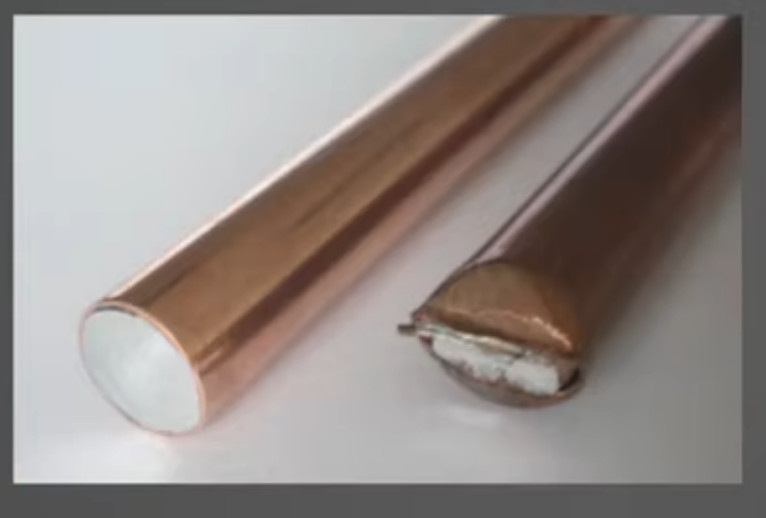

• Core: Copper or copper-clad steel conductor, which carries the signal.
• Insulation: A layer of dielectric (usually foam or solid plastic) separates the core from the shield, providing signal insulation.

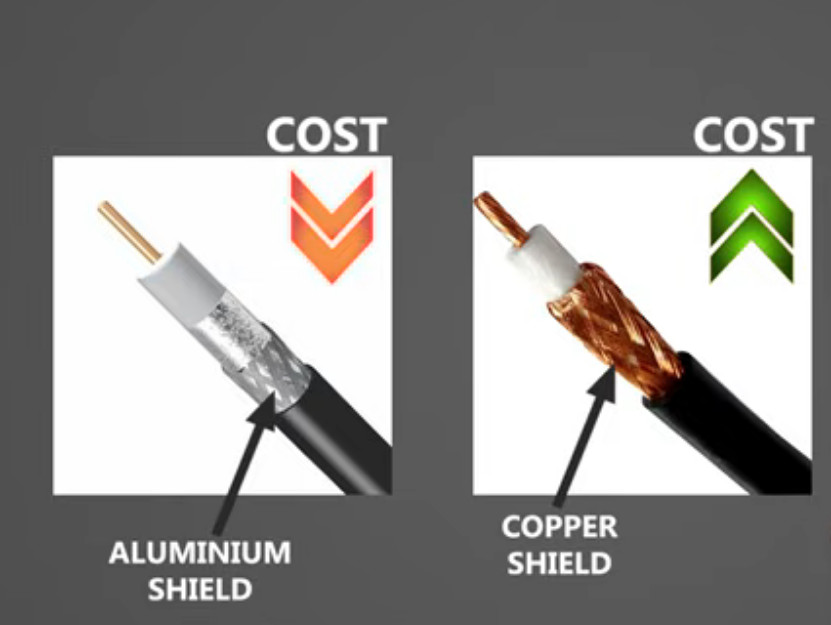

• Shielding: RG6 typically has a dual shield construction, with a combination of foil and braided mesh, providing enhanced protection against electromagnetic interference (EMI).
• Outer Jacket: A durable outer layer, usually made of PVC or similar material, protects the internal components from environmental damage.

Key Features:

• Impedance: 75 ohms (standard for video and TV systems).
• Bandwidth: RG6 can support higher frequencies (up to 3 GHz), making it suitable for high-definition video signals.
• Signal Loss: RG6 has less signal loss over longer distances than RG59 due to its larger conductor and better shielding.
• Applications:
  • Cable TV and satellite TV connections.
  • Broadband internet (for DOCSIS-based cable modems).
  • CCTV video surveillance systems (especially for longer distances or high-quality video).

Advantages:

• Better performance at higher frequencies, making it ideal for high-definition signals.
• Reduced signal degradation over long distances.
• Stronger shielding, making it more resistant to interference.

Limitations:

• Slightly bulkier and less flexible compared to RG59.
• May be overkill for short-distance analog CCTV installations.

2. RG59 Coaxial Cable

Description:

RG59 is a thinner, more flexible coaxial cable that is often used in analog CCTV systems and shorter-distance video transmission. It is a standard choice for residential and low-bandwidth applications.

Construction:

• Core: Copper or copper-clad steel conductor.
• Insulation: A dielectric material surrounds the conductor, keeping the signal separate from the shielding.
• Shielding: RG59 usually has a single shield, typically braided or foil, providing less protection against interference than RG6.
• Outer Jacket: A protective PVC or other durable material to safeguard the cable from environmental factors.

Key Features:

• Impedance: 75 ohms, making it suitable for video applications.
• Bandwidth: RG59 is generally suitable for lower-frequency applications (up to 500 MHz).
• Signal Loss: Higher signal loss over long distances compared to RG6.
• Applications:
  • Analog CCTV video surveillance systems.
  • Shorter-range video transmission in residential or office settings.
  • Video systems with lower resolution requirements.

Advantages:

• More flexible than RG6, which makes it easier to install in tight spaces or around corners.
• Lower cost compared to RG6, which makes it ideal for less-demanding applications.

Limitations:

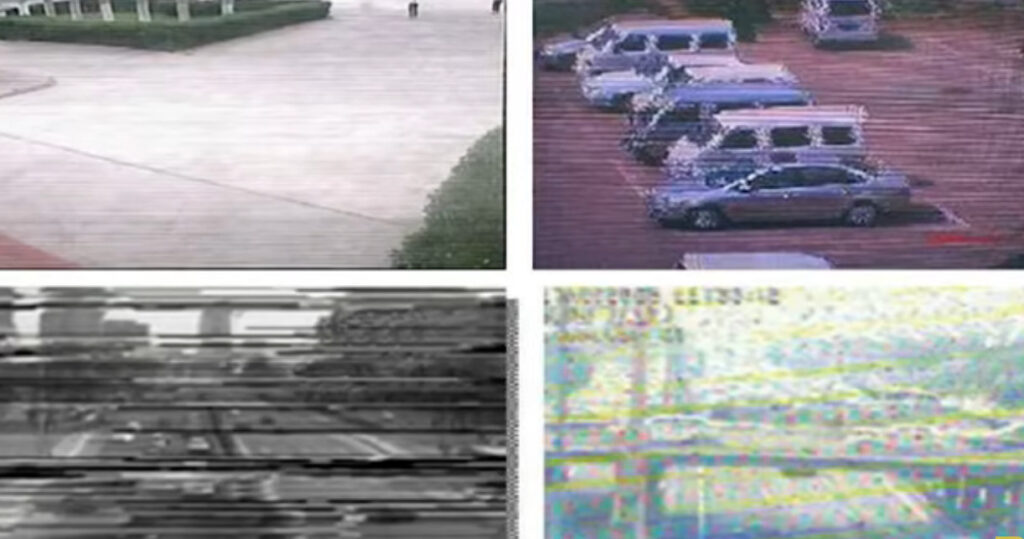

• More susceptible to interference than RG6, especially for longer cable runs.
• Signal degradation over longer distances due to higher attenuation.
• Not suitable for high-definition video or high-frequency applications.

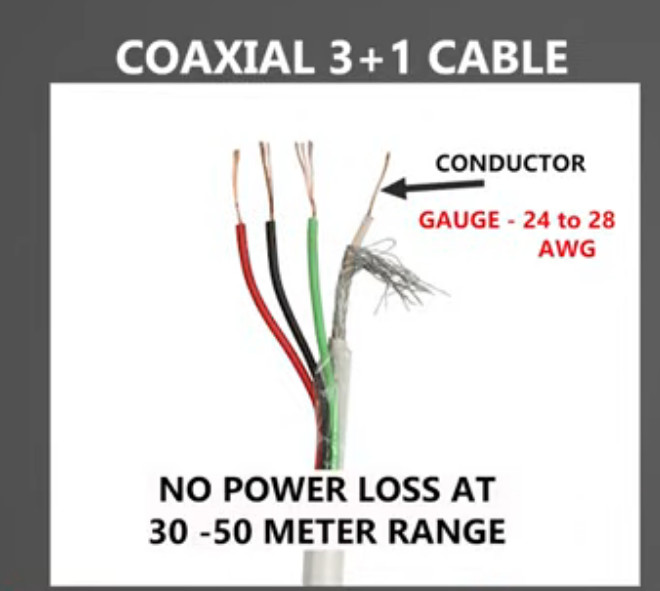

3. Coaxial 3+1 Cable

Description:

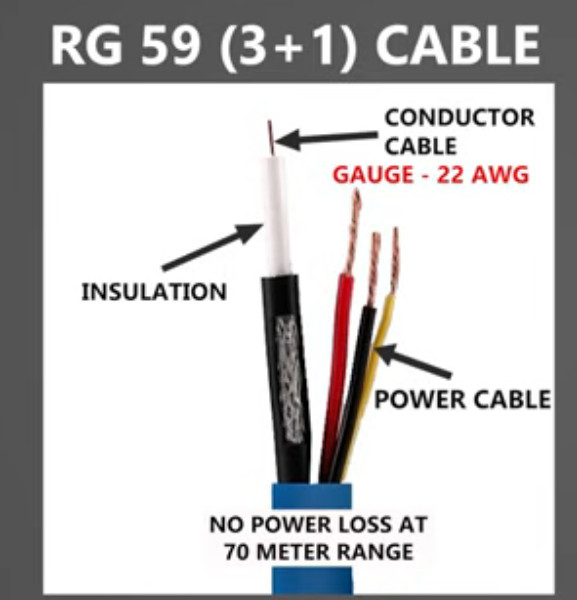

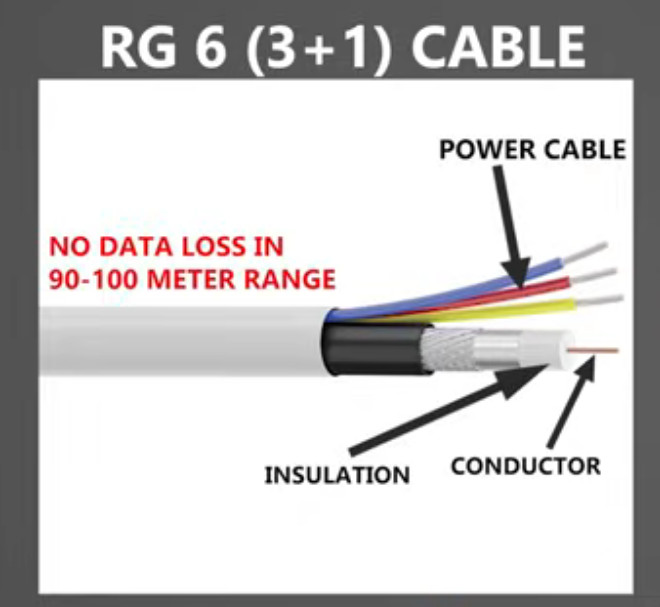

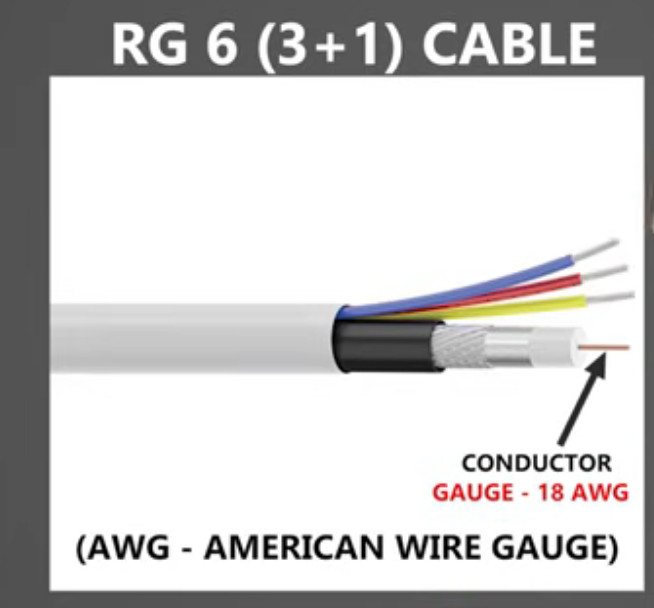

The Coaxial 3+1 cable is a type of cable that includes 3 coaxial cables (often RG59 or RG6) and an additional cable (the “+1” typically refers to a power cable). This configuration is commonly used in applications like CCTV systems where both power and video signals need to be transmitted over a single cable.

Construction:

• 3 Coaxial Cables: Typically, these are RG59 or RG6 cables used to transmit video signals (from cameras to DVRs or other monitoring equipment).
• Power Cable: An additional cable (often a 2-wire or 4-wire cable) is included for supplying power to the CCTV cameras, especially in cases where the cameras do not have separate power lines.

Key Features:

• Impedance: The coaxial cables in the 3+1 configuration still typically have a 75-ohm impedance for video signal transmission.
• Power Transmission: The additional wire allows you to send power to the camera alongside the video signal, eliminating the need for a separate power line.
• Applications:
  • CCTV systems, especially for cameras that need both video and power from a single cable.
  • Smaller installations where fewer cables are needed.
  • Situations where a clean and tidy installation is necessary, and power supply lines can be combined with video signal lines.

Advantages:

• Simplifies installation by combining power and video transmission in one cable, reducing the number of cables required.
• Ideal for locations where running multiple cables would be difficult (e.g., along walls or ceilings).
• Often used in DIY CCTV setups or smaller surveillance systems.

Limitations:

• The video signal may experience some degradation over long distances, especially with the thinner RG59 coaxial cables typically used in this configuration.
• Requires more careful attention to the power requirements, as not all cameras can operate over long cable distances with the same power supply.

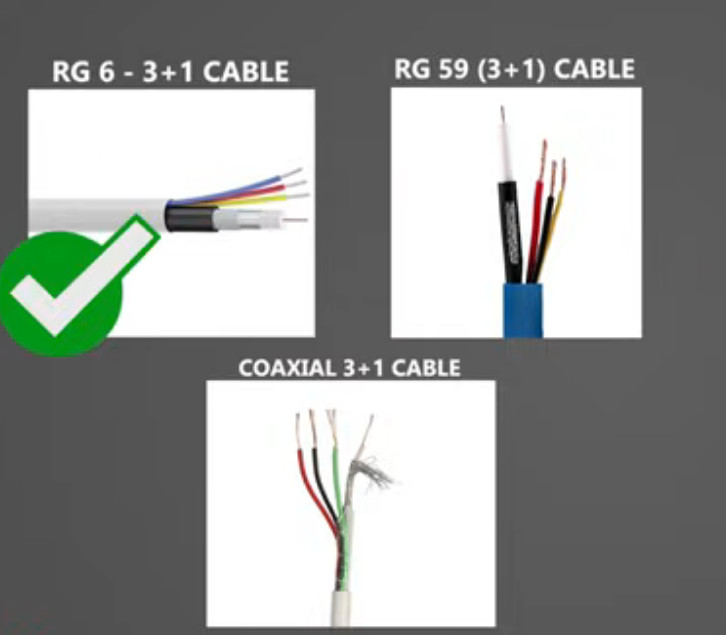

Key Differences: RG6, RG59, and Coaxial 3+1 Cable

Choosing the Right Cable for Your CCTV System

• For High-Definition CCTV Systems (HD and IP cameras): RG6 is the better choice due to its superior shielding, lower signal loss, and higher-frequency bandwidth. It’s especially useful for longer cable runs or higher-quality video transmission.

• For Analog CCTV Systems (Standard-definition): RG59 is commonly used in analog CCTV systems. It’s suitable for shorter distances and is easier to work with because it’s more flexible.

• For Systems Requiring Both Video and Power Over One Cable: Coaxial 3+1 Cable is ideal when you need to run both video and power to the cameras through a single cable, simplifying installation and reducing cable clutter. However, make sure that the power cable within the 3+1 configuration can handle the voltage and current required by your cameras.

Conclusion

• RG6 is typically preferred for high-definition video and long-distance runs due to its superior performance in terms of signal integrity.
• RG59 is more suitable for analog systems, where video resolution requirements are lower, and cable runs are shorter.
• Coaxial 3+1 Cable is convenient for installations where both video and power need to be delivered over a single cable, such as in basic CCTV systems.

When choosing between these cables, consider factors like the quality of video you need, the distance between devices, and the ease of installation.
